GLEC2 Series
Manufacturer: Honeywell Sensing and Control EMEA
Beta
⌘K

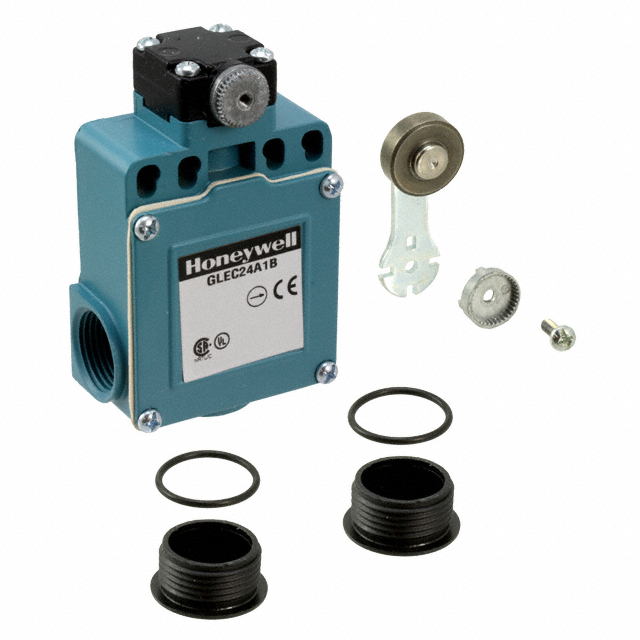

SWITCH SNAP ACTION DPDT 6A 120V
| Part | Ingress Protection | Voltage Rating - DC | Actuator Type | Operating Force | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Current Rating (Amps) | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - AC | Circuit | Differential Travel | Differential Travel | Pretravel | Pretravel | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Control EMEA | IP67 - Dust Tight Waterproof | 125 VDC | Roller Plunger | 1315 gf | Chassis Mount | On-Mom | 85 °C | -40 C | 15000000 Cycles | 6 A 550 mA | 1.1 in | 28 mm | 0.118 " | 3 mm | 120 V | DPDT | 0.025 in | 0.6 mm | 0.12 in | 3 mm | Screw Terminal | |
 Honeywell Sensing and Control EMEA | IP67 - Dust Tight Waterproof | 125 VDC | Roller Side Rotary | 17 gfm | Chassis Mount | On-Mom | 85 °C | -40 C | 10000000 Cycles | 6 A 550 mA | 26 ° | 49 ° | 120 V | DPDT | 8 ° | 26 ° | Screw Terminal | Steel Roller |
