SLE06 Series

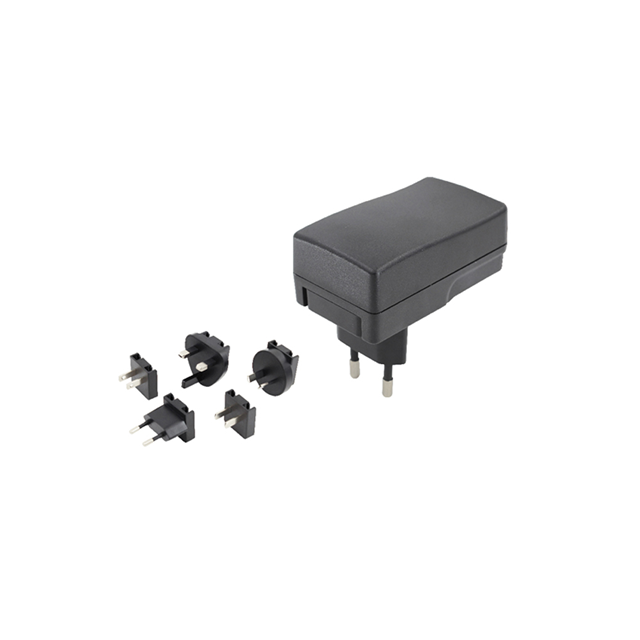

Wall Mount AC Adapters SLE06S0503C01

Manufacturer: SL POWER / Advanced Energy

Catalog

Wall Mount AC Adapters SLE06S0503C01

Catalog

Wall Mount AC Adapters SLE06S0503C01

Part	Region Utilized	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Input Connector	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Efficiency	No Load Power Consumption	Polarization	Input Type	Power (Watts)	Form	Standard Number
SL POWER / Advanced Energy SLE06S0903B01	International	9 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	600 mA	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Sold Separately)	5.4 Watts	Wall Mount
SL POWER / Advanced Energy SLE06S0503B01	International	5 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1 A	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Sold Separately)	5 W	Wall Mount
SL POWER / Advanced Energy SLE06S0599B01	International	5 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Sold Separately)			264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical			USB A Receptacle	1 A	CoC Tier 2 Level VI	75 mW		Multi-Blade (Sold Separately)	5 W	Wall Mount
SL POWER / Advanced Energy SLE06S0903C01	International	9 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Included)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	600 mA	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Included)	5.4 Watts	Wall Mount	60601-1 60950-1 62368-1
SL POWER / Advanced Energy SLE06S1203B01	International	12 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	500 mA	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Sold Separately)	6 W	Wall Mount
SL POWER / Advanced Energy SLE06S0503C01	International	5 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Included)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1 A	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Included)	5 W	Wall Mount	60601-1 60950-1 62368-1
SL POWER / Advanced Energy SLE06S1203C01	International	12 V	1.67 in	30.7 mm	1.21 "	2.89 in	42.5 mm	73.5 mm	CB CCC CE cULus cURus GS KC PSE RCM TUV	Multi-Blade (Included)	1.5 m	59 in	264 VAC	90 VAC	45 °C	0 °C	ITE (Commercial) Medical	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	500 mA	CoC Tier 2 Level VI	75 mW	Positive Center	Multi-Blade (Included)	6 W	Wall Mount	60601-1 60950-1 62368-1
