1776302 Series

Catalog

CONN TERM STRIP 1CIRCUIT

Part	Current Rating (Amps)	Color	Barrier Type	Mounting Type	Material Flammability Rating	Terminal Block Type	Number of Circuits	Voltage Rating	Number of Wire Entries	Bottom Termination	Operating Temperature	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Material - Insulation	Terminal Screw Finish	Terminal Screw Material	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 1776302-1	40 A	Natural	Enclosed	Chassis Panel	UL94 V-2	Eurostyle Terminal Strip	1	250 VDC	2	Closed	212 °F	Screws	22 AWG	10 AWG	2	Polyamide (PA66) Nylon 6/6	Non-Hexavalent Chromate Zinc	Steel

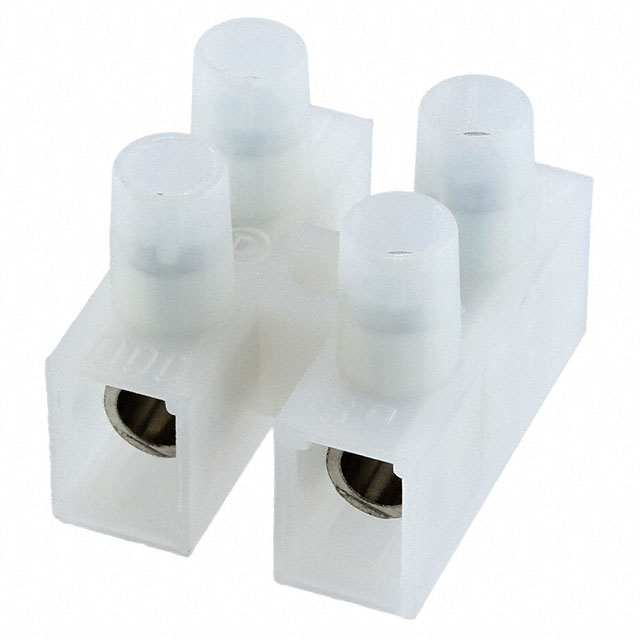

TE Connectivity Raychem Cable Protection 1776302-2	40 A	Natural	Enclosed	Chassis Panel	UL94 V-2	Eurostyle Terminal Strip	2	250 VDC	4	Closed	212 °F	Screws	22 AWG	10 AWG	2	Polyamide (PA66) Nylon 6/6	Non-Hexavalent Chromate Zinc	Steel	12 mm	0.472 in
TE Connectivity Raychem Cable Protection 1776302-9	40 A	Natural	Enclosed	Chassis Panel	UL94 V-2	Eurostyle Terminal Strip		250 VDC	18	Closed	212 °F	Screws	22 AWG	10 AWG	2	Polyamide (PA66) Nylon 6/6	Non-Hexavalent Chromate Zinc	Steel	12 mm	0.472 in

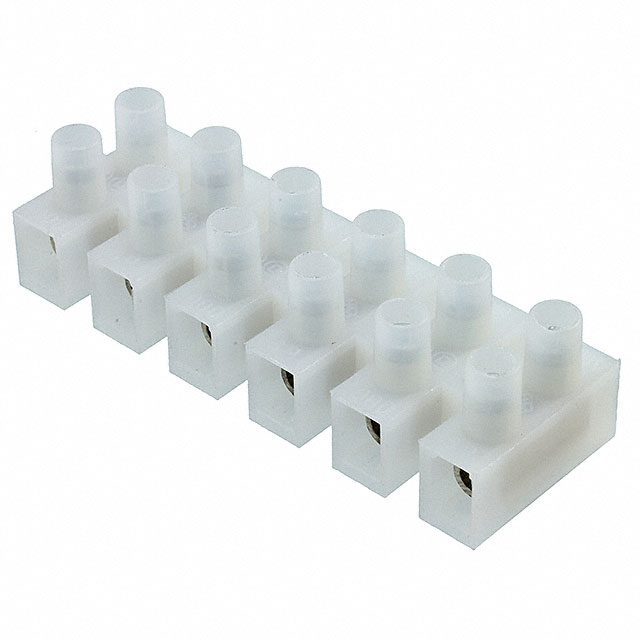

TE Connectivity Raychem Cable Protection 1776302-6	40 A	Natural	Enclosed	Chassis Panel	UL94 V-2	Eurostyle Terminal Strip	6	250 VDC	12	Closed	212 °F	Screws	22 AWG	10 AWG	2	Polyamide (PA66) Nylon 6/6	Non-Hexavalent Chromate Zinc	Steel	12 mm	0.472 in
TE Connectivity Raychem Cable Protection 1776302-7	40 A	Natural	Enclosed	Chassis Panel	UL94 V-2	Eurostyle Terminal Strip	7	250 VDC	14	Closed	212 °F	Screws	22 AWG	10 AWG	2	Polyamide (PA66) Nylon 6/6	Non-Hexavalent Chromate Zinc	Steel	12 mm	0.472 in
