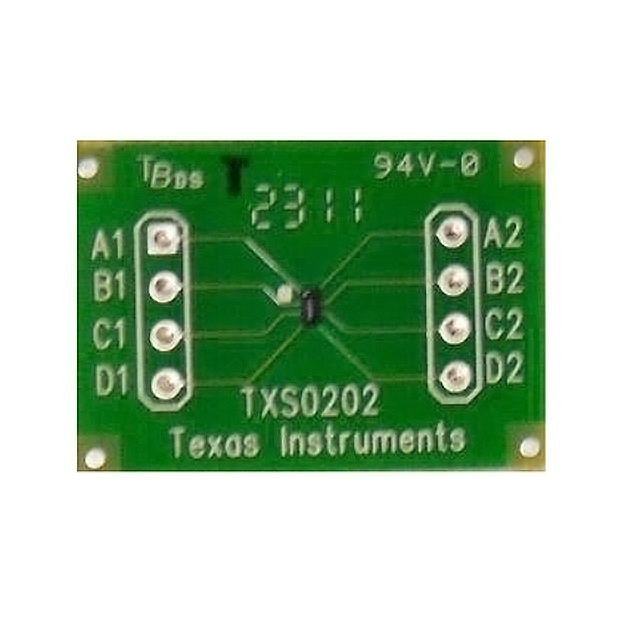

Voltage-Level Shifter for IC-USB Interface
Key Features
• No Direction Control Signal RequiredVCCA, VCCBSupply Voltage: 1.65 V to 3.6 VMeets All Requirements of the IC-USB StandardSmall Packages: WCSPLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIIoffSupports Partial-Power-Down Mode OperationESD PerformanceA port (Host-Side)2000-V Human-Body Model100-V Machine Model500-V Charged-Device ModelB port (Peripheral-Side)>4kV HBMNo Direction Control Signal RequiredVCCA, VCCBSupply Voltage: 1.65 V to 3.6 VMeets All Requirements of the IC-USB StandardSmall Packages: WCSPLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIIoffSupports Partial-Power-Down Mode OperationESD PerformanceA port (Host-Side)2000-V Human-Body Model100-V Machine Model500-V Charged-Device ModelB port (Peripheral-Side)>4kV HBM
Description
AI
The TXS0202 is a 2-bit voltage level translator optimized for use in Interchip USB (IC-USB) applications. VCCAand VCCBcan each operate over the full range of 1.65 V to 3.6 V. The device has been designed to maintain cross-over skew to be less than 1 ns. The device has integrated pull-ups and pull-down resistors to aid in the protocol communication between a host and a peripheral. The translator is a buffered auto-direction sensing type translator. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
The TXS0202 is a 2-bit voltage level translator optimized for use in Interchip USB (IC-USB) applications. VCCAand VCCBcan each operate over the full range of 1.65 V to 3.6 V. The device has been designed to maintain cross-over skew to be less than 1 ns. The device has integrated pull-ups and pull-down resistors to aid in the protocol communication between a host and a peripheral. The translator is a buffered auto-direction sensing type translator. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
