11_N-50 Series

Catalog

11_N-50-9-9/033_-E

Part	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Center Contact Plating	Body Material	Voltage Rating	Mating Cycles	Housing Color	Center Contact Material	Shield Termination	Connector Style	Impedance	Connector Type	Mounting Type	Number of Ports	Contact Termination	Frequency - Max [Max]	Fastening Type	Cable Group	Ingress Protection

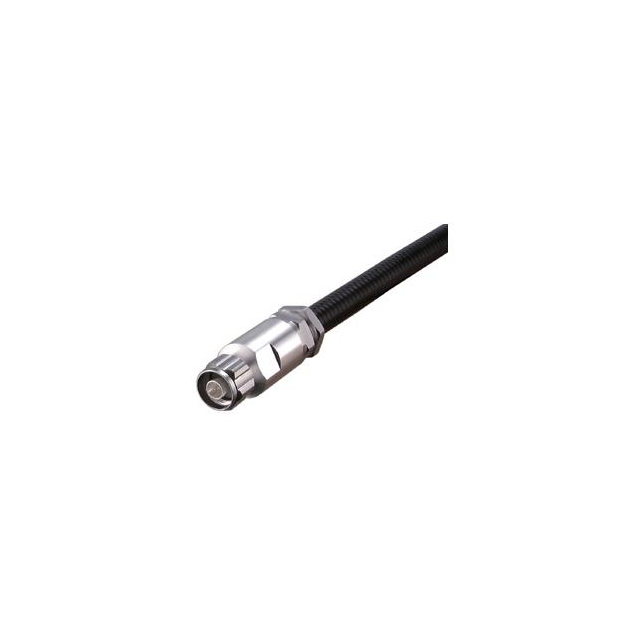

Huber+Suhner, Inc. 11_N-50-9-9/033_-E	White Bronze	85 °C	-40 C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	Brass	1000 VDC	500	Silver	Bronze	Clamp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded
Huber+Suhner, Inc. 11_N-50-7-44/133_NH	White Bronze	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Brass	Crimp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded	RG-214
Huber+Suhner, Inc. 11_N-50-3-29/133_NE	White Bronze	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Brass	Crimp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded	223 RG-142
Huber+Suhner, Inc. 11_N-50-4-9/133_NE	White Bronze	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Bronze	Clamp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded

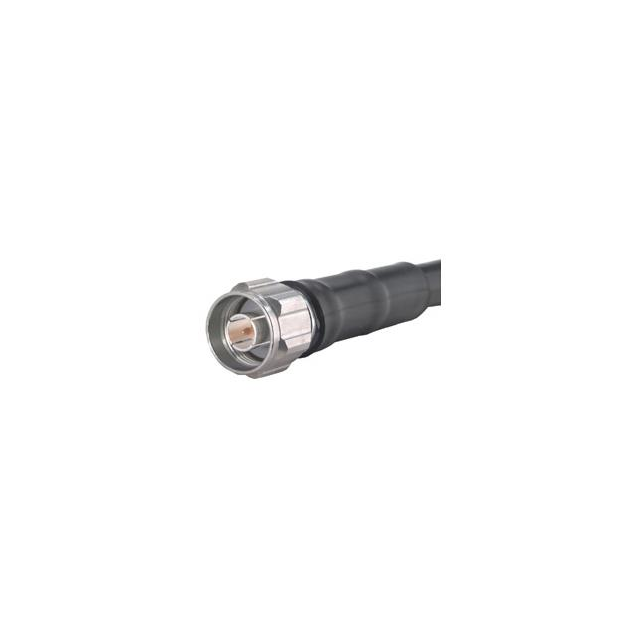

Huber+Suhner, Inc. 11_N-50-10-5/103_UV	Silver	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass		500	Silver	Bronze	Crimp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	3 GHz	Threaded		IP67 - Dust Tight Waterproof
Huber+Suhner, Inc. 11_N-50-4-63/133_NE	White Bronze	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Brass	Crimp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded
Huber+Suhner, Inc. 11_N-50-3-51/133_NE	White Bronze	70 °C	-55 C		Gold	Brass	1000 VDC	500	Silver	Beryllium Copper	Solder	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	18 GHz	Threaded	RG-141
Huber+Suhner, Inc. 11_N-50-7-82/133_NE	White Bronze	160 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Bronze	Clamp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded	LMR-400
Huber+Suhner, Inc. 11_N-50-6-19/12-_NE	Nickel	165 °C	-60 °C	Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Beryllium Copper	Clamp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	18 GHz	Threaded	RG-6C
Huber+Suhner, Inc. 11_N-50-7-33/133_NE	White Bronze	165 °C	-65 ░C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Brass	1000 VDC	500	Silver	Brass	Crimp	N Type	50 Ohms	Plug Male Pin	Free Hanging (In-Line)	1	Crimp	11 GHz	Threaded
