TS78L09 Series

Catalog

STANDARD REGULATOR POS 9V 0.1A 3-PIN SOT-23 T/R

Part	Output Configuration	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Protection Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Number of Regulators	Current - Output	Current - Quiescent (Iq)	Supplier Device Package	PSRR	Mounting Type	Package / Case	Package / Case	Package / Case
Taiwan Semiconductor Corporation TS78L09CX RFG	Positive	9 V	35 V	Over Current Over Temperature	SC-59 SOT-23-3 TO-236-3	85 C	-40 ¯C	1.7 V	1	100 mA	6 mA	SOT-23	57 dB	Surface Mount

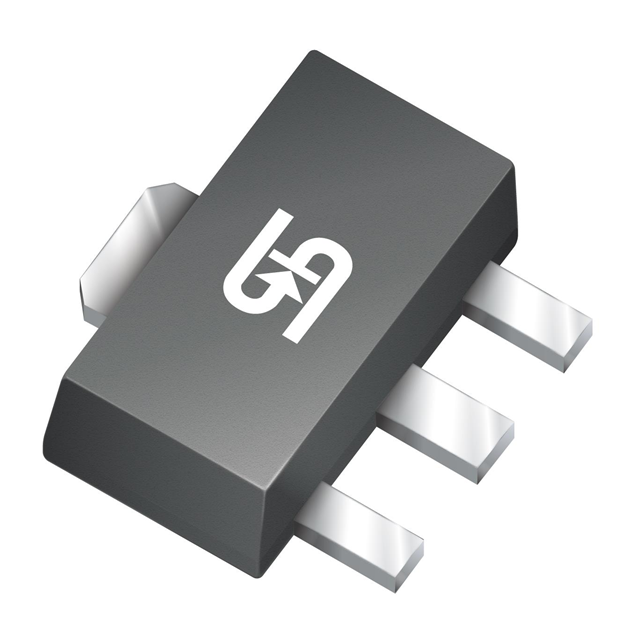

Taiwan Semiconductor Corporation TS78L09ACY RMG	Positive	9 V	35 V	Over Current Over Temperature	TO-243AA	85 C	-40 ¯C	1.7 V	1	100 mA	6 mA		57 dB	Surface Mount
Taiwan Semiconductor Corporation TS78L09CT B0G	Positive	9 V	35 V	Over Current Over Temperature	TO-226-3 TO-92-3	85 C	-40 ¯C	1.7 V	1	100 mA	6 mA	TO-92	57 dB	Through Hole	TO-226AA

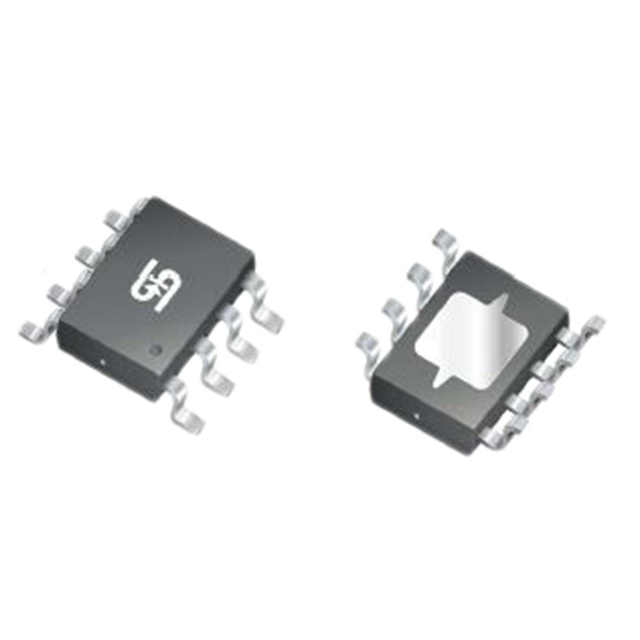

Taiwan Semiconductor Corporation TS78L09CS RLG	Positive	9 V	35 V	Over Current Over Temperature	8-SOIC	85 C	-40 ¯C	1.7 V	1	100 mA	6 mA	8-SOP	57 dB	Surface Mount		0.154 in	3.9 mm
