Intelligent Power Module, 600V, 15A
Key Features
• UL Certified No.E209204
• 600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
• Easy PCB layout thanks to built in bootstrap diodes
• Three separate negative DC-link terminals for inverter current sensing applications
• Single-grounded power supply for built-in HVICs
• Isolation rating of 2500Vrms/min.
Description
AI

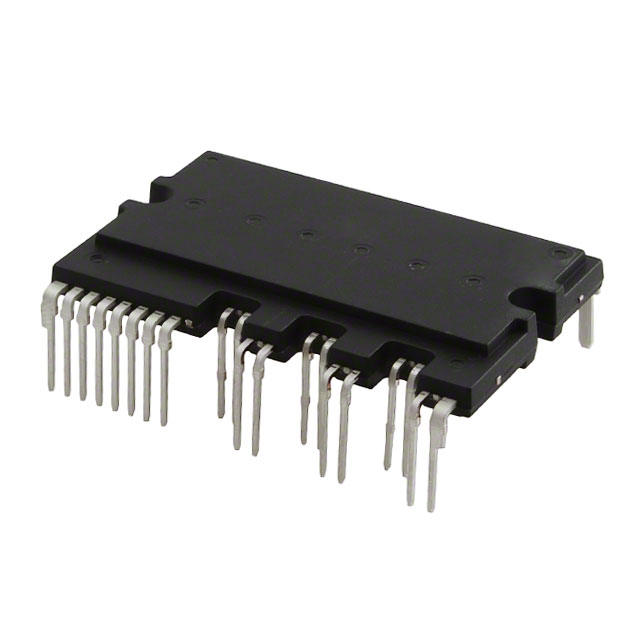

FSBF15CH60BT is an advacned Motion SPM®3 series that ON Semiconductor has newly developed to provide a very compact and high performance inverter solution for AC motor drives in low-power applications such as air conditioners and washing machines. It combines optimized circuit protections and drives matched to low-loss IGBTs. The system reliability is further enhanced by the integrated under-voltage lock-out and over-current protection. The high speed built-in HVIC provides optocoupler- less single-supply IGBT gate driving capability that further reduces the overall size of the inverter system. Each phase leg current of the inverter can be monitored thanks to three separate negative dc terminals.
