LHA-03 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shrouding	Overall Contact Length	Overall Contact Length	Contact Shape	Mounting Type	Style	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Type	Number of Rows	Insulation Material	Voltage Rating	Contact Material	Connector Type	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]

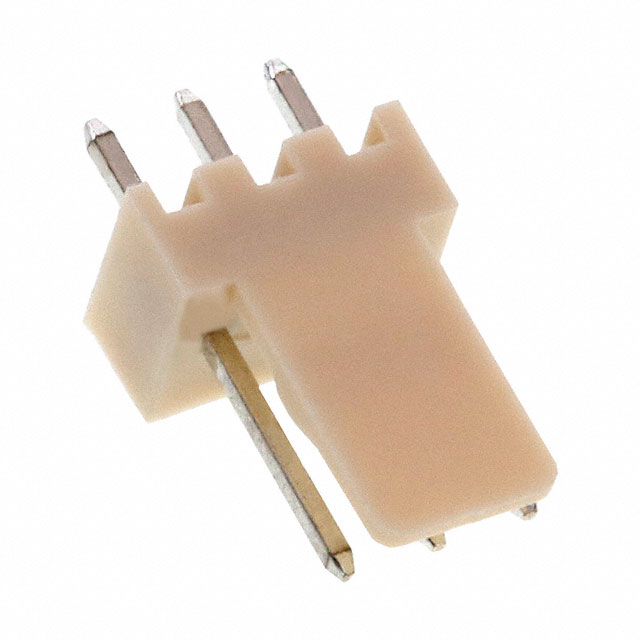

Adam Tech LHA-03-TS	Tin	0.134 "	3.4 mm	0.134 in	3.4 mm	All	Ivory	0.291 in	7.4 mm	3 A	85 °C	-25 °C	Friction Lock	Shrouded - 1 Wall	14.2 mm	0.559 "	Square	Through Hole	Board to Cable/Wire	Solder	0.1 "	2.54 mm	UL94 V-2	Male Pin	1	Nylon Polyamide (PA)	250 VAC	Brass	Header

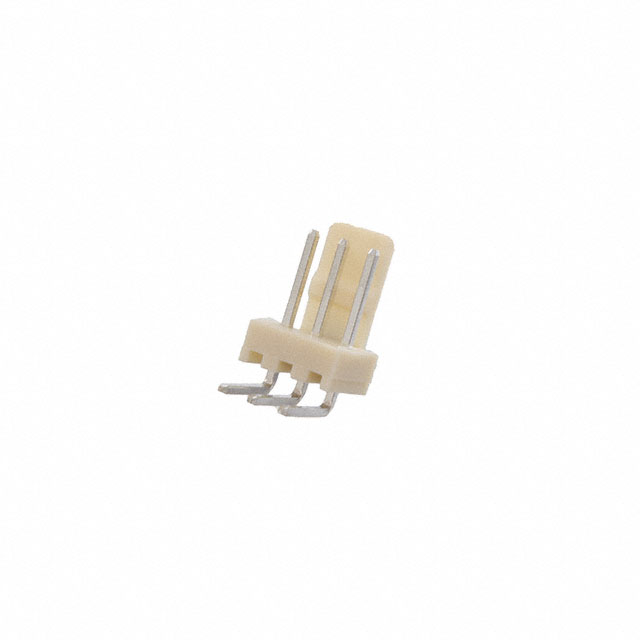

Adam Tech LHA-03-TRA	Tin	0.134 "	3.4 mm			All	White		7 mm	3 A	105 ░C	-40 C	Friction Lock	Shrouded - 1 Wall			Square	Right Angle Through Hole	Board to Cable/Wire	Solder	0.1 "	2.54 mm	UL94 V-2	Male Pin	1	Nylon 6/6 Polyamide (PA66)	250 VAC	Brass	Header	0.276 in	0.228 "	5.8 mm

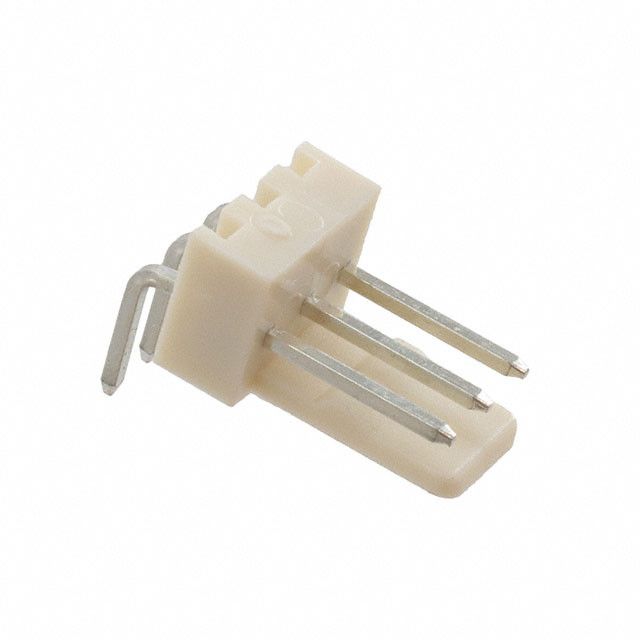

Adam Tech LHA-03-TRB	Tin	0.134 "	3.4 mm			All	White	0.293 in	7.45 mm	3 A	85 °C	-25 °C	Friction Lock	Shrouded - 1 Wall			Square	Right Angle Through Hole	Board to Cable/Wire	Solder	0.1 "	2.54 mm	UL94 V-2	Male Pin	1	Nylon 6/6 Polyamide (PA66)	250 VAC	Brass	Header		0.228 "	5.8 mm
