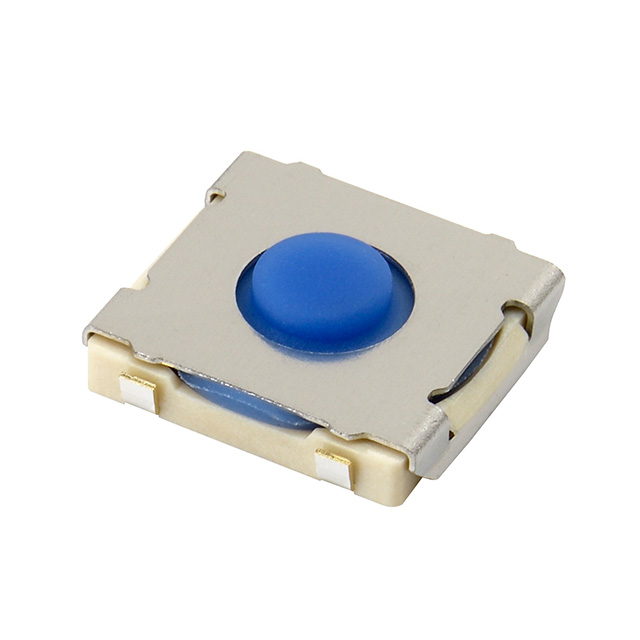

B3SE Series

Catalog

TACTILE SWITCH, SPST-NO, B3SE SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 1.96 N

Part	Mechanical Life	Illumination	Termination Style	Switch Function	Circuit	Contact Rating @ Voltage	Actuator Orientation	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Ingress Protection	Features	Actuator Height off PCB, Vertical [z]	Actuator Type	Mounting Type
Omron Electronics Inc-EMC Div B3SE-1002	1000000 Cycles	Non-Illuminated	J Lead	Off-Mom	SPST-NO	0.05 A 12 VDC	Top Actuated	7 mm	6.2 mm	-25 °C	70 °C	0.2 kgf	IP67 - Dust Tight Waterproof	Sealed - Fully	2 mm	Standard	Surface Mount
Omron Electronics Inc-EMC Div B3SE-1002P	1000000 Cycles	Non-Illuminated	J Lead	Off-Mom	SPST-NO	0.05 A 12 VDC	Top Actuated	7 mm	6.2 mm	-25 °C	70 °C	0.2 kgf	IP67 - Dust Tight Waterproof	Sealed - Fully	2 mm	Standard	Surface Mount
