2287018 Series

Catalog

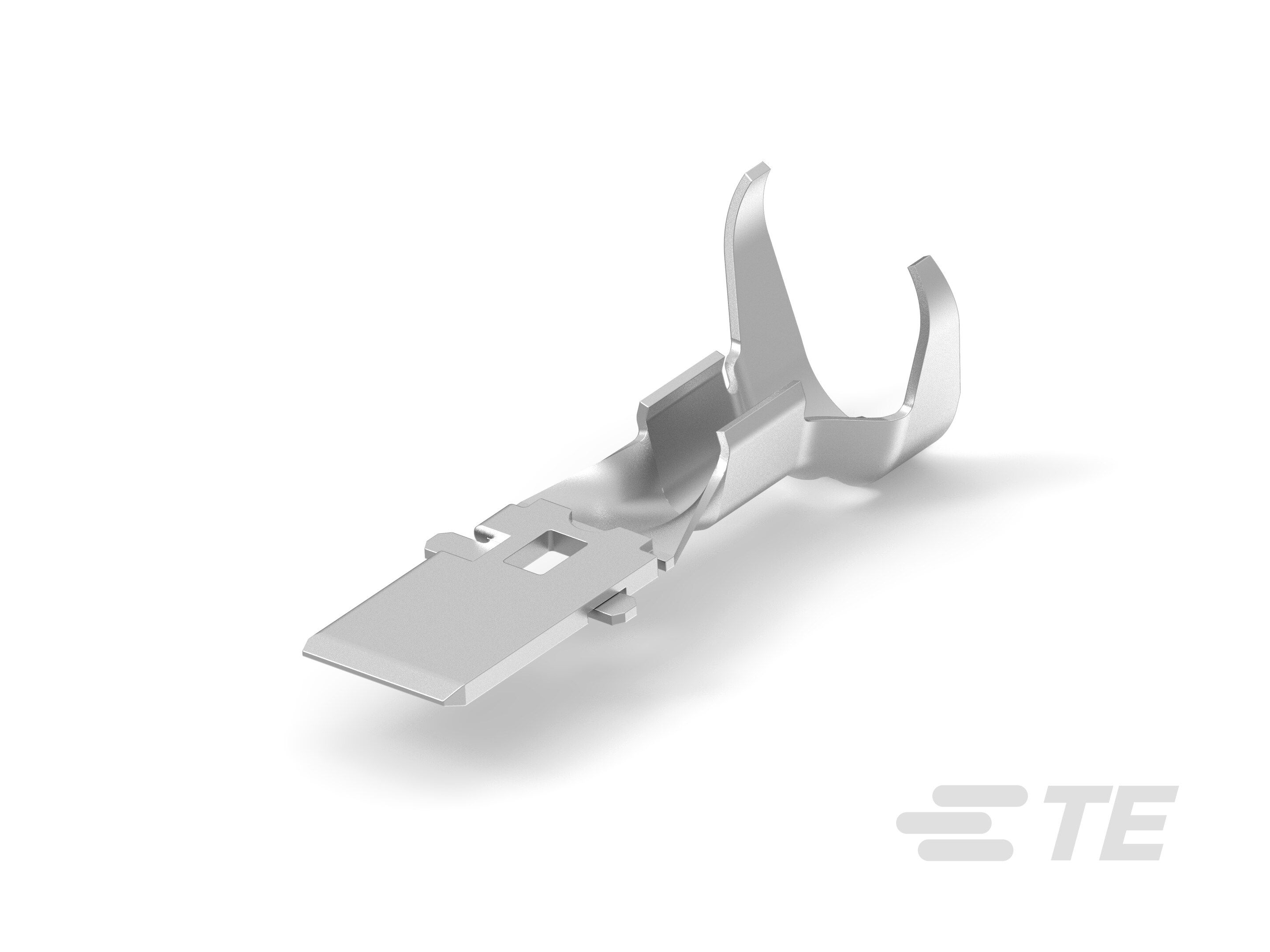

TAB 9.5X1.2,10SQMM,AG

Part	Contact Finish	Tab Width	Tab Width	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Length	Tab Length	Gender	Termination	Terminal Type	Contact Material	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity Raychem Cable Protection 2-2287018-3	Tin	9.5 mm	0.374 in	Free Hanging (In-Line)	40.4 mm	1.591 in	Non-Insulated	17.6 mm	0.693 in	Male	Crimp	Standard	Copper	0.047 in	1.19 mm	8 AWG	10 AWG
TE Connectivity Raychem Cable Protection 2-2287018-1	Tin	9.5 mm	0.374 in	Free Hanging (In-Line)	40.4 mm	1.591 in	Non-Insulated	17.6 mm	0.693 in	Male	Crimp	Standard	Copper	0.047 in	1.19 mm	8 AWG	10 AWG
TE Connectivity Raychem Cable Protection 1-2287018-1	Tin	9.5 mm	0.374 in	Free Hanging (In-Line)	39.4 mm	1.551 in	Non-Insulated	17.6 mm	0.693 in	Male	Crimp	Standard	Copper	0.047 in	1.19 mm	4 AWG	6 AWG
