179960 Series

Catalog

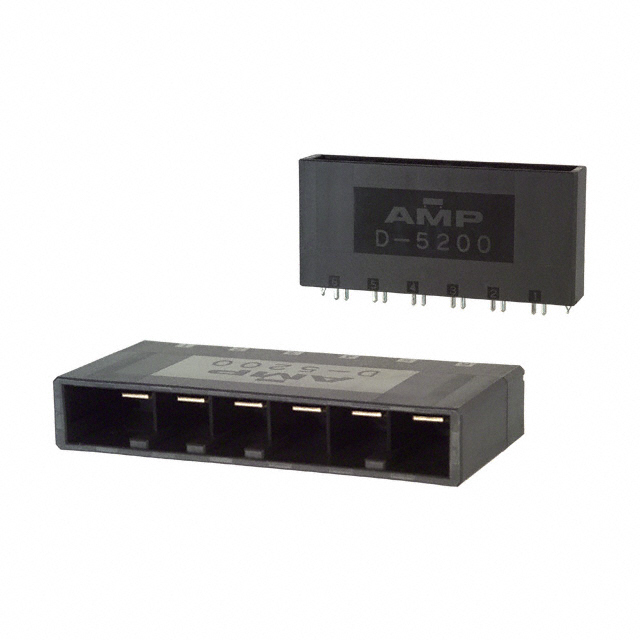

CONN HEADER VERT 6POS 10.16MM

Part	Shrouding	Fastening Type	Insulation Color	Mounting Type	Number of Positions Loaded	Termination	Contact Shape	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Material	Number of Positions	Voltage Rating	Number of Rows	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Insulation Height	Insulation Height	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 2-179960-2	Shrouded - 4 Wall	Detent Lock	Black	Through Hole	All	Solder	Rectangular	Copper Alloy	General Purpose Industrial	105 ░C	-55 °C	Tin	Glass Filled Polyester Thermoplastic	6	630 V	1	Gold	0.15 in	3.81 mm	Header	32 mm	1.26 in	Board to Cable/Wire	10.16 mm	0.4 in	30 A	Tab	UL94 V-0	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 7-179960-2	Shrouded - 4 Wall	Detent Lock	Black	Through Hole	All	Solder	Rectangular	Copper Alloy	General Purpose Industrial	105 ░C	-55 °C	Tin	Glass Filled Polyester Thermoplastic	6	630 V	1	Gold			Header	32 mm	1.26 in	Board to Cable/Wire	10.16 mm	0.4 in	30 A	Tab	UL94 V-0	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 2-179960-3	Shrouded - 4 Wall	Detent Lock	Black	Through Hole	All	Solder	Rectangular	Copper Alloy	General Purpose Industrial	105 ░C	-55 °C	Tin	Glass Filled Polyester Thermoplastic	6	630 V	1	Gold	0.15 in	3.81 mm	Header	32 mm	1.26 in	Board to Cable/Wire	10.16 mm	0.4 in	30 A	Tab	UL94 V-0	30 Áin	0.76 Ám
