09140082 Series
Manufacturer: HARTING
Beta
⌘K
HAN EE 8PIN MODULE MALE QUICKLOCK FOR AWG 20-14 (0.5-2.5MM2), GOLDTEC CONTACTS
| Part | Color | Housing Material | Contact Material | Contact Finish | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Voltage Rating | Connector Type | Number of Positions | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | |||||||||||||

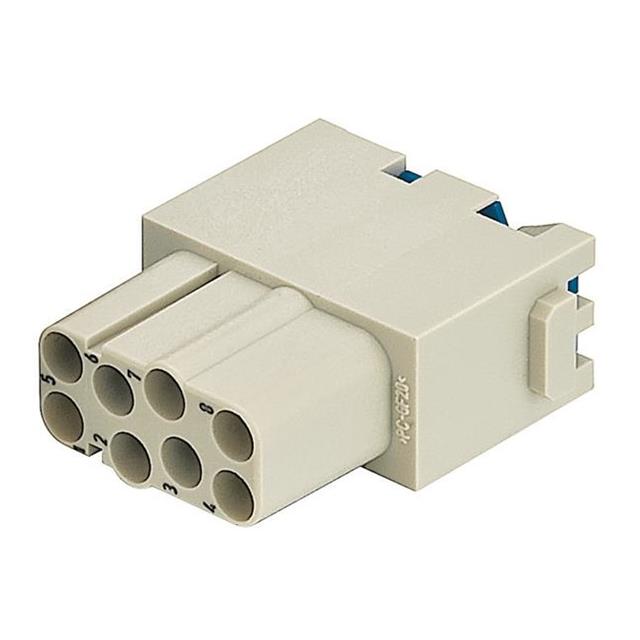

 HARTING | Gray | Polycarbonate (PC) | Copper Alloy | Silver | UL94 V-0 | 125 °C | -40 C | 16 A | Push In with Lock | 400 V | Module | 8 | Female |

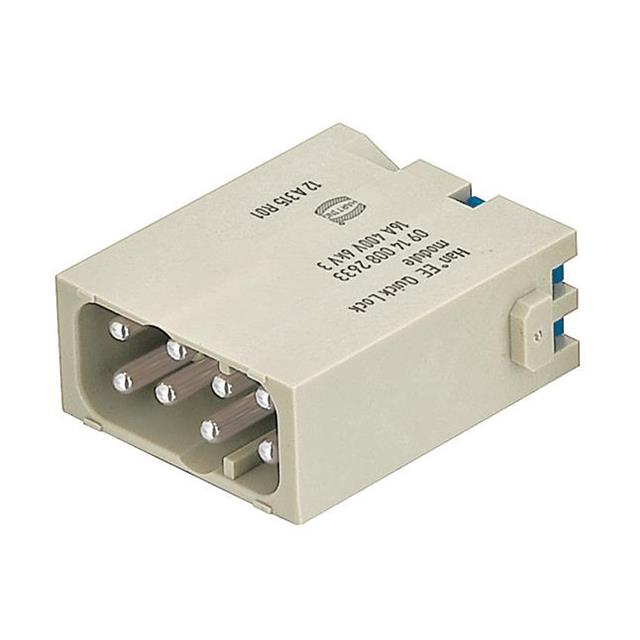

 HARTING | Gray | Polycarbonate (PC) | Copper Alloy | Silver | UL94 V-0 | 125 °C | -40 C | 16 A | Push In with Lock | 400 V | Module | 8 | Male |
 HARTING | Gray | Polycarbonate (PC) | Copper Alloy | Silver | UL94 V-0 | 125 °C | -40 C | 16 A | Push In with Lock | 400 V | Module | 8 | Male |
HARTING | |||||||||||||

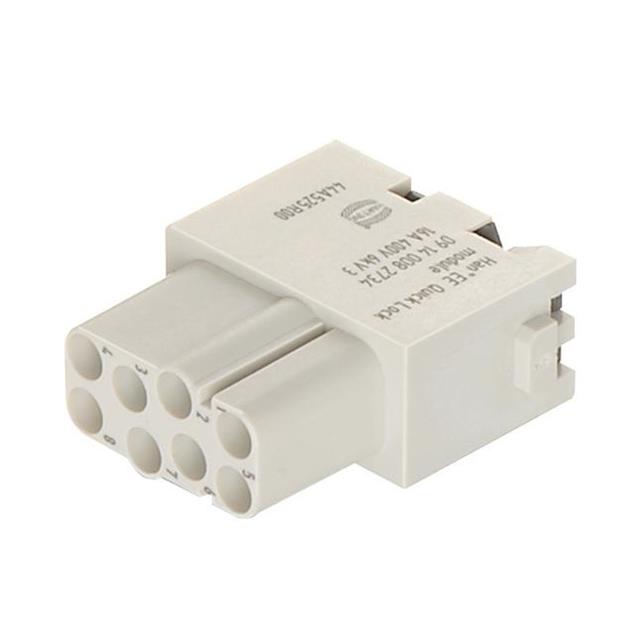

 HARTING | Gray | Polycarbonate (PC) | Copper Alloy | Silver | UL94 V-0 | 125 °C | -40 C | 16 A | Push In with Lock | 400 V | Module | 8 | Female |
