CSD87384M Series

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 3.5 mm LGA, 30 A

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 3.5 mm LGA, 30 A

Part	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Package / Case	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Technology	Drain to Source Voltage (Vdss)	FET Feature	Configuration	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Outputs and Type	Outputs and Type	Utilized IC / Part	Main Purpose	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Voltage - Output	Regulator Topology	Board Type	Supplied Contents
Texas Instruments CSD87384M	30 A	5-PTAB (5x3.5)	5-LGA	7.7 mOhm	-55 °C	150 °C	1.9 V	MOSFET (Metal Oxide)	30 V	Logic Level Gate	2 N-Channel (Half Bridge)	8 W	9.2 nC	1150 pF	Surface Mount
Texas Instruments CSD87384MT	30 A	5-PTAB (5x3.5)	5-LGA	7.7 mOhm	-55 °C	150 °C	1.9 V	MOSFET (Metal Oxide)	30 V	Logic Level Gate	2 N-Channel (Half Bridge)	8 W	9.2 nC	1150 pF	Surface Mount

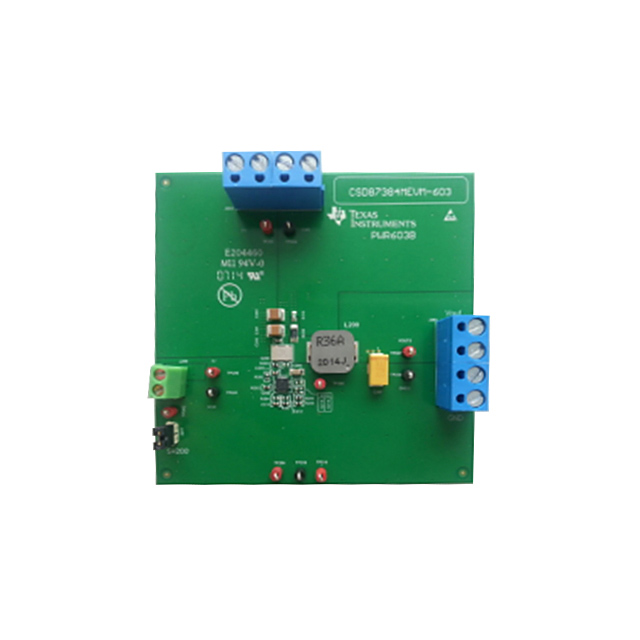

Texas Instruments CSD87384MEVM-603																Non-Isolated	1	CSD87384M TPS51219	DC/DC Step Down	300 kHz	20 V	8 V	30 A	1 V	Buck	Fully Populated	Board(s)

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 3.5 mm LGA, 30 A

Key Features

• Half-Bridge Power Block90.5% System Efficiency at 25 AUp to 30 A OperationHigh Density – 5 mm × 3.5 mm LGA FootprintDouble-Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreePb-FreeHalf-Bridge Power Block90.5% System Efficiency at 25 AUp to 30 A OperationHigh Density – 5 mm × 3.5 mm LGA FootprintDouble-Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreePb-Free

Description

The CSD87384M NexFET™ Power Block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5.0 mm × 3.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate drive from an external controller or driver. The CSD87384M NexFET™ Power Block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5.0 mm × 3.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate drive from an external controller or driver.
