78028 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

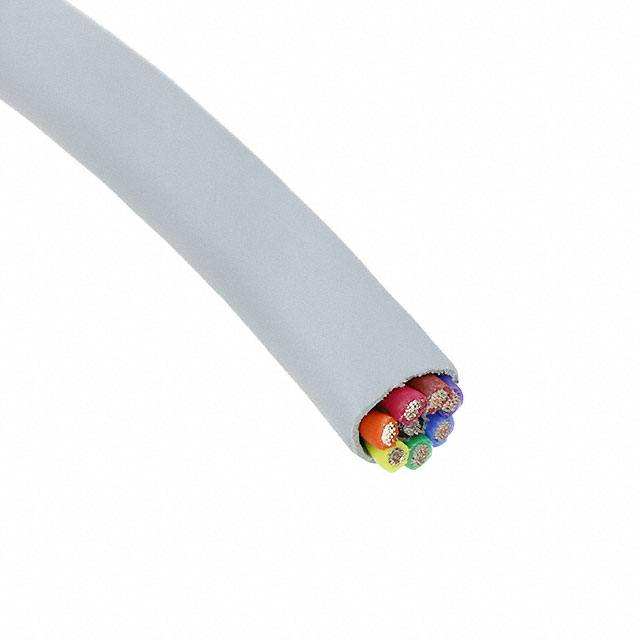

CABLE 8COND 24AWG SLATE 1'
| Part | Number of Conductors | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Features | Ratings | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Material | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 8 | Copper Tinned | 0.164 in | 4.17 mm | 24 AWG | Multi-Conductor | Biological Compatibility Rip Cord | ISO 10993 UL Style 21460 | Slate | -40 °C | 80 C | 300 V | 0.015 in | 0.381 mm | 1 ft | 300 mm | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | ||
ALPHA WIRE | 8 | Copper Tinned | 0.164 in | 4.17 mm | 24 AWG | Multi-Conductor | Biological Compatibility Rip Cord | ISO 10993 UL Style 21460 | Slate | -40 °C | 80 C | 300 V | 0.015 in | 0.381 mm | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | 30.5 m | 100 ft |
