6342PC Series
Manufacturer: Belden Inc.
Beta
⌘K

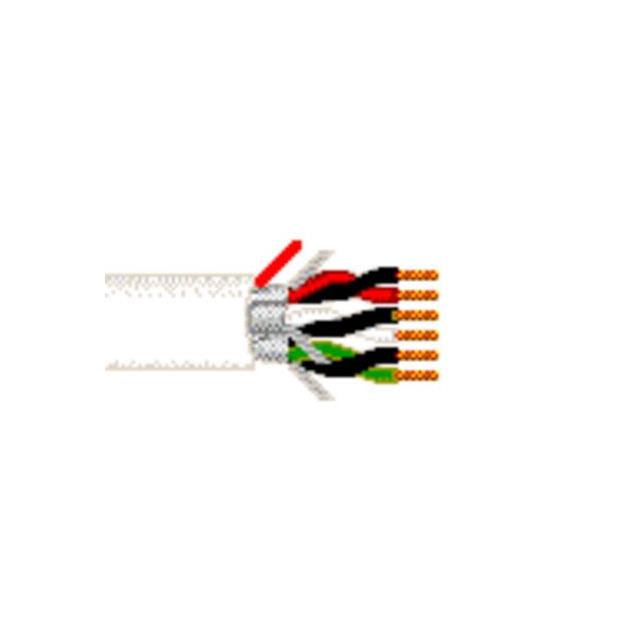

MULTI-PAIR 6COND 18AWG NAT
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Insulation | Conductor Material | Voltage | Number of Conductors | Jacket (Insulation) Material | Cable Type | Shield Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 18 AWG | Fluorinated Ethylene-Propylene (FEP) | Copper Bare | 300 VDC | 6 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Multi-Pair | Foil | Security Sound | 26 AWG | 7 | Natural | 0.42 mm | 0.0165 in | 304.8 m | 1000 ft | 7.62 mm | 0.3 in | 75 ░C | 0 °C | Drain Wire Rip Cord | UL Style CMP |
