LUG TERMINAL, PAN-LUG LCD SERIES, CRIMP, 0 AWG, COMPRESSION LUG, M6

Part	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Tab Thickness	Tab Thickness	Terminal Style	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Mounting Type	Color	Width - Outer Edges	Width - Outer Edges	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Finish	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness [custom]	Tab Thickness [custom]
Panduit Corp LCD1/0-14A-X	44 AWG	2.57 in	65.28 mm	Lug Grounding	Non-Insulated	0.12 in	3.05 mm	Two Stud Holes	0.25 Stud	0.76 "	19.3 mm	Barrel Crimp	Free Hanging (In-Line)	Pink
Panduit Corp LCD10-14AF-L	10 AWG			Rectangular Tongue	Non-Insulated	0.05 "	1.27 mm	Two Stud Holes	0.25 Stud			Barrel Crimp	Free Hanging (In-Line) Right Angle		10.67 mm	0.42 in

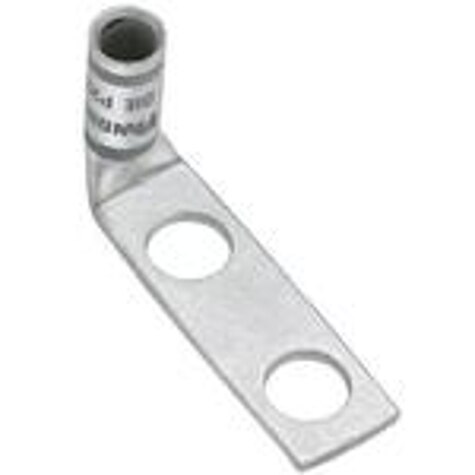

Panduit Corp LCD4/0-38D-X	4 aught AWG			Rectangular Tongue	Non-Insulated	0.14 in	3.56 mm	Two Stud Holes	0.375 Stud	1.06 in		Barrel Crimp	Free Hanging (In-Line)	Purple	26.92 mm
Panduit Corp LCD4/0-12F-X	4 aught AWG			Rectangular Tongue	Non-Insulated	0.14 in	3.56 mm	Two Stud Holes	0.5 Stud	1.06 in		Barrel Crimp	Free Hanging (In-Line) Right Angle	Purple	26.92 mm
Panduit Corp LCD8-14BF-L	8 AWG			Rectangular Tongue	Non-Insulated	0.07 in	1.78 mm	Two Stud Holes	0.25 Stud	0.48 "	12.19 mm	Barrel Crimp	Free Hanging (In-Line) Right Angle	Red
Panduit Corp LCD6-14BH-L	6 AWG			Rectangular Tongue	Non-Insulated	0.08 "	2.03 mm	Two Stud Holes	0.25 Stud	0.48 "	12.19 mm	Barrel Crimp	Free Hanging (In-Line)	Blue
Panduit Corp LCD10-10AH-L				Rectangular Tongue	Non-Insulated			Two Stud Holes	10 Stud	0.38 in	9.65 mm	Barrel Crimp	Free Hanging (In-Line)				5.59 mm	0.22 in	3.3 mm	0.13 "	Electro-Tin	5.08 mm	0.2 in	Copper	14 AWG	10 AWG	0.06 in	1.52 mm
Panduit Corp LCD4/0-12-X	4 aught AWG	4.58 in	116.33 mm	Rectangular Tongue	Non-Insulated	0.14 in	3.56 mm	Two Stud Holes	0.5 Stud	1.06 in		Barrel Crimp	Free Hanging (In-Line)	Purple	26.92 mm
Panduit Corp LCD4/0-00-X	4 aught AWG	4.58 in	116.33 mm	Rectangular Tongue	Non-Insulated	0.14 in	3.56 mm	No Stud Hole		1.06 in		Barrel Crimp	Free Hanging (In-Line)	Purple	26.92 mm
