C50TD3AT Series
Manufacturer: Oupiin
Beta
⌘K

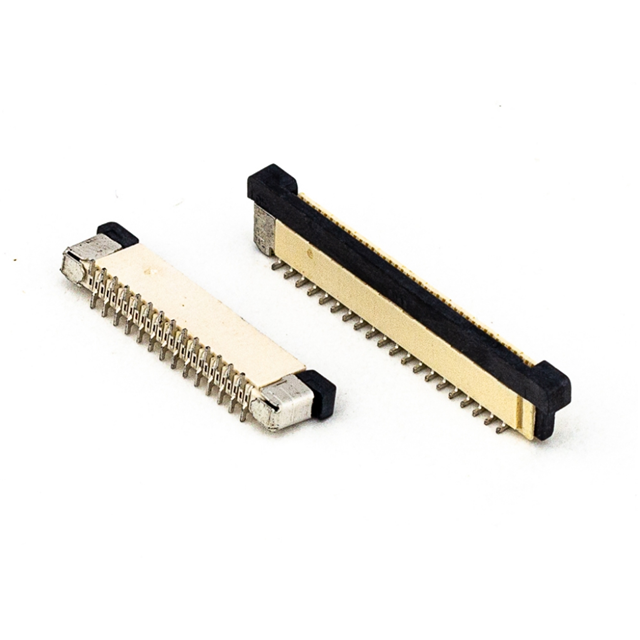

CONN FFC VERT 50POS 0.5MM SMD
| Part | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Features | Connector/Contact Type | Locking Feature | Cable End Type | Pitch | Pitch | Housing Material | Voltage Rating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions | Contact Finish | Termination | Height Above Board [z] | Height Above Board [z] | Flat Flex Type | FFC, FCB Thickness | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | 2.54 µm | 100 µin | 0.5 A | Solder Retention Zero Insertion Force (ZIF) | Contacts Vertical - 1 Sided | Slide Lock | Straight | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | 50 V | Phosphor Bronze | 85 °C | -25 °C | Surface Mount | 50 | Tin | Solder | 4.9 mm | 0.193 in | FFC FPC | 0.3 mm | UL94 V-0 |
