172-E50 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 50POS PNL MNT
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish Thickness | Flange Feature | Number of Positions | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Style | Mounting Type | Features | Contact Type | Connector Type | Contact Finish | Current Rating (Amps) | Number of Rows [custom] | Color | Shell Material, Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

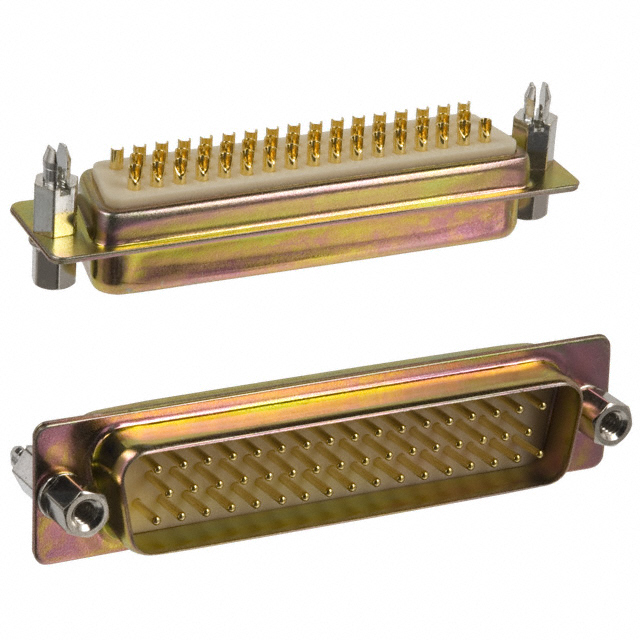

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Cable Side (4-40) Mating Side Female Screwlock (4-40) | 50 | Steel | Yellow Chromate Plated | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount | Board Lock | Signal | Receptacle Female Sockets | Gold | 5 A | 3 | |||

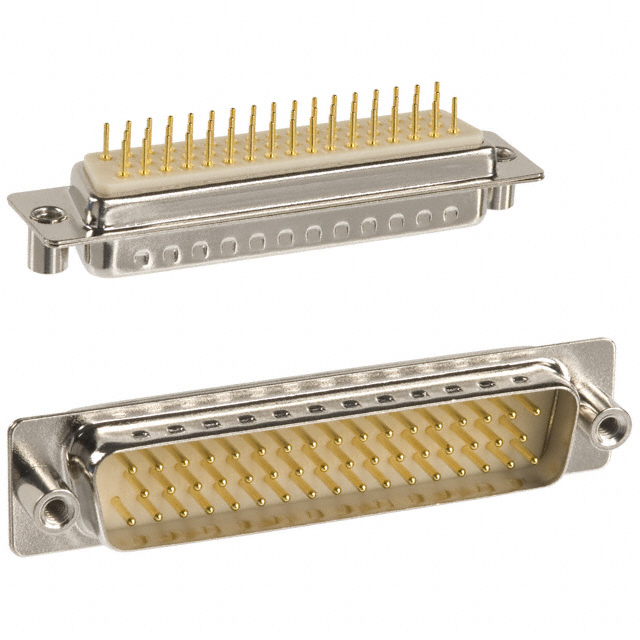

 NorComp Inc. | Polyamide (PA6T) Nylon 6T | 100 °C | -50 °C | Brass | Flash | Housing/Shell (Unthreaded) | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Grounding Indents | Signal | Plug Male Pins | Gold | 5 A | 3 | White | Nickel Plated Steel | Solder | ||
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | 100 °C | -50 °C | Brass | Flash | Board Side (4-40) | 50 | Steel | Yellow Chromate Plated | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Signal | Plug Male Pins | Gold | 5 A | 3 | White | Solder | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | Board Side (4-40) | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Signal | Receptacle Female Sockets | Gold | 5 A | 3 | White | Solder | |||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | Housing/Shell (Unthreaded) | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Signal | Receptacle Female Sockets | Gold | 5 A | 3 | White | Solder | |||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Cable Side (4-40) Mating Side Female Screwlock (4-40) | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount | Board Lock Grounding Indents | Signal | Plug Male Pins | Gold | 5 A | 3 | White | ||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Cable Side (4-40) Mating Side Female Screwlock (4-40) | 50 | Steel | Yellow Chromate Plated | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount | Board Lock | Signal | Plug Male Pins | Gold | 5 A | 3 | White | ||
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | 100 °C | -50 °C | Brass | Flash | 4-40 | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Grounding Indents | Signal | Plug Male Pins | Gold | 5 A | 3 | White | Nickel Plated Steel | Solder | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 100 °C | -50 °C | Flash | Board Side (4-40) | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Grounding Indents | Signal | Plug Male Pins | Gold | 5 A | 3 | White | Solder | ||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | 4-40 | 50 | 5 | D DD | UL94 V-0 | D-Sub | Panel Mount Through Hole | Signal | Receptacle Female Sockets | Gold | 5 A | 3 | White | Solder |
