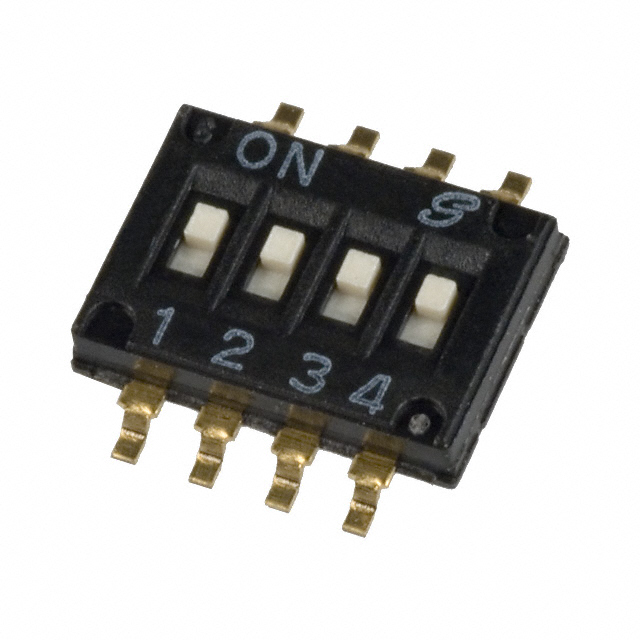

97C04 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Length [x] | Length [x] | Mechanical Life | Current Rating (Amps) | Actuator Level | Termination Style | Washable | Contact Finish | Contact Material | Pitch | Pitch | Pitch | Number of Positions | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Polyamide (PA) Nylon | 6.31 mm | 0.248 in | 1000 Cycles | 25 mA | Flush Recessed | Gull Wing | Gold | Copper Alloy | 0.05 " | 1.27 mm | Half | 4 | SPST | 85 °C | -40 C | Surface Mount | 24 VDC | 1.6 mm | 0.063 in | Slide (Standard) |
