DLP-04 Series

Catalog

AC/DC CONVERTER 16V 3.8W

Part	Applications	Mounting Type	Voltage - Isolation	Current - Output 1	Power (Watts)	Type	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Input Type

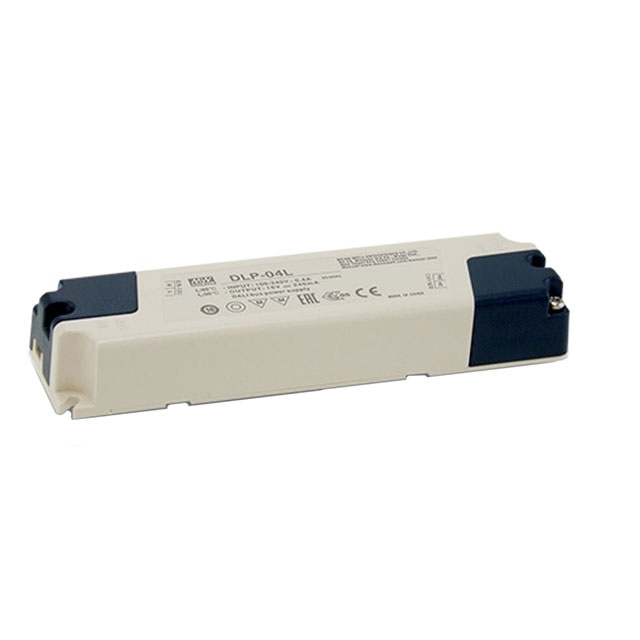

MEAN WELL USA Inc. DLP-04L	ITE (Commercial)	Chassis Mount	3000 V	240 mA	3.8 W	Enclosed	Adjustable Output Universal Input	38 mm	1.5 "	0.87 in	5.71 "	145 mm	22 mm	60 °C	-20 °C	1	90 VAC 120 VDC	264 VAC 370 VDC	CE EAC ENEC	16 V

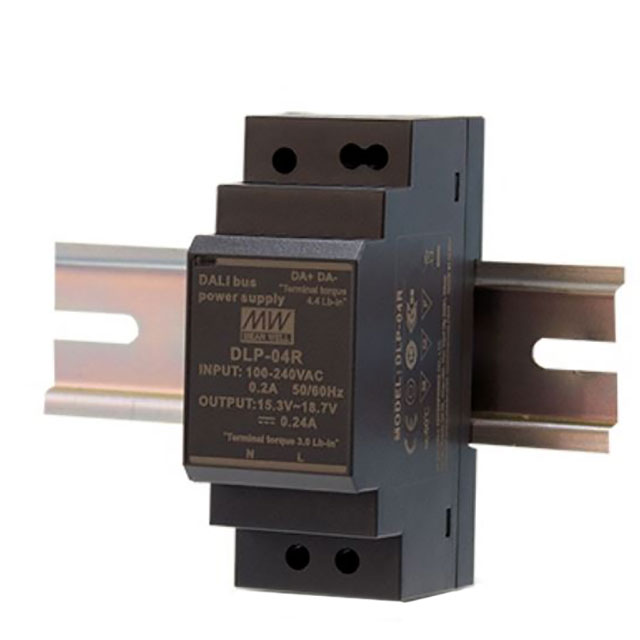

MEAN WELL USA Inc. DLP-04R	ITE (Commercial)		3000 V		3.8 W		Adjustable Output Universal Input							60 °C	-20 °C	1			CE EAC ENEC	16 V	370 V	90 VAC	264 VAC	120 V	240 mA	AC or DC
