9GA0812 Series

Catalog

FAN AXIAL 80X25.2MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Bearing Type	Voltage - Rated	Termination	Static Pressure	Static Pressure	Fan Type	RPM	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Power (Watts)	Approval Agency	Width [x]	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Features	Width [y]
Sanyo Denki America Inc. 9GA0812G4002	Plastic	480 mA	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	2 Wire Leads	0.6 in H2O	149.5 Pa	Tubeaxial	6800 RPM	67.4 CFM	1.89 m³/min	-20 ░C	70 °C	45 dB(A)	5.76 W	CSA TUV UL	25.2 mm	80 mm	80 mm	110.22 g	0.243 lb
Sanyo Denki America Inc. 9GA0812J4001	Plastic	600 mA	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	3 Wire Leads	0.7 in H2O	174.4 Pa	Tubeaxial	7400 RPM	73 CFM	2.04 m³/min	-20 ░C	70 °C	48 dB	7.2 W	CSA TUV UL	25.2 mm	80 mm	80 mm	110.22 g	0.243 lb	Locked Rotor Protection Speed Sensor (Tach)

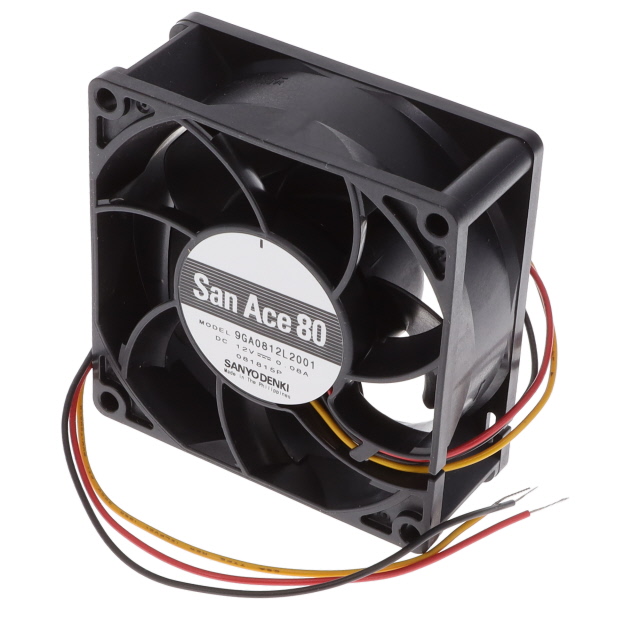

Sanyo Denki America Inc. 9GA0812L2001	Plastic				Plastic		Ball	12 VDC	3 Wire Leads			Tubeaxial							960 mW			80 mm	80 mm			Locked Rotor Protection Speed Sensor (Tach)	32 mm
Sanyo Denki America Inc. 9GA0812H4001	Plastic	0.22 A	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	3 Wire Leads	0.35 in H2O	87.2 Pa	Tubeaxial	5200 RPM	51.5 CFM	1.44 m³/min	-20 ░C	70 °C	37 dB	2.64 W	CSA TUV UL	25.2 mm	80 mm	80 mm	110.22 g	0.243 lb	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0812P1H611	Plastic	600 mA	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	4 Wire Leads	1.53 in H2O	381.1 Pa	Tubeaxial	8250 RPM	79.4 CFM	2.22 m³/min	-20 ░C	70 °C	55 dB(A)	7.2 W	CSA TUV UL		80 mm	80 mm	160.12 g	0.353 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm
Sanyo Denki America Inc. 9GA0812S161	Plastic	0.94 A	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	3 Wire Leads	1.93 in H2O	480.8 Pa	Tubeaxial	9550 RPM	91.8 CFM	2.57 m³/min	-20 ░C	70 °C	59 dB(A)	11.28 W	CSA TUV UL		80 mm	80 mm	160.12 g	0.353 lb	Locked Rotor Protection Speed Sensor (Tach)	38 mm
Sanyo Denki America Inc. 9GA0812P4J0011	Plastic	600 mA	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	4 Wire Leads	0.7 in H2O	174.4 Pa	Tubeaxial	7400 RPM	73 CFM	2.04 m³/min	-20 ░C	70 °C	48 dB	7.2 W	CSA TUV UL		80 mm	80 mm	110.22 g	0.243 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)	25 mm

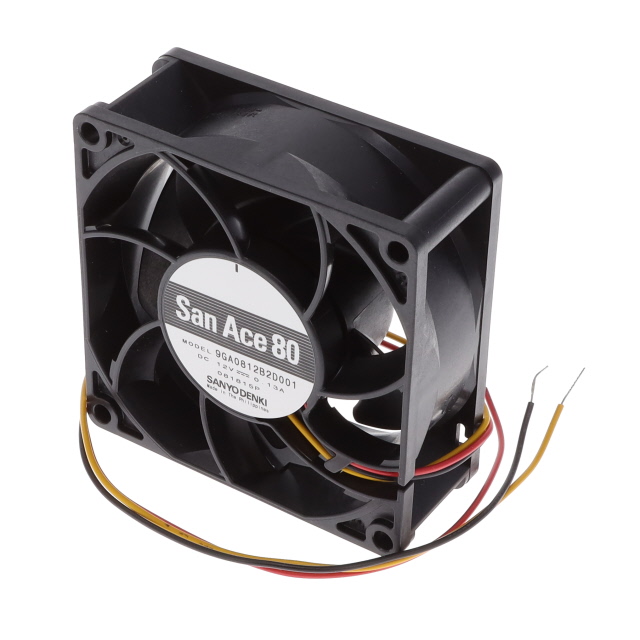

Sanyo Denki America Inc. 9GA0812B2D001	Plastic				Plastic		Ball	12 VDC	3 Wire Leads			Tubeaxial							1.56 W			80 mm	80 mm			Locked Rotor Sensor	32 mm
Sanyo Denki America Inc. 9GA0812P1G61	Plastic	1.2 A	10.8 VDC	13.2 VDC	Plastic	Varies Based on Temperature	Ball	12 VDC	4 Wire Leads	1.93 in H2O	480.8 Pa	Tubeaxial	10500 RPM	100.6 CFM	2.82 m³/min	-20 ░C	70 °C	60 dB(A)	14.4 W	CSA TUV UL		80 mm	80 mm	160.12 g	0.353 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm

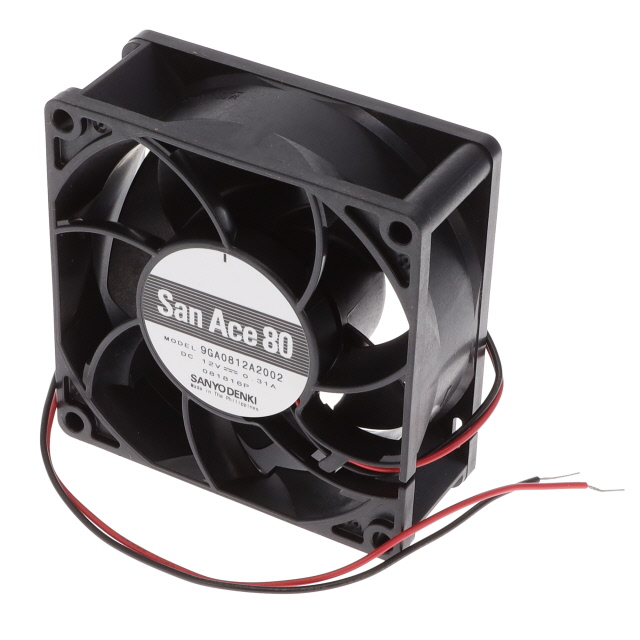

Sanyo Denki America Inc. 9GA0812A2002	Plastic				Plastic		Ball	12 VDC	2 Wire Leads			Tubeaxial							3.72 W			80 mm	80 mm				32 mm
