FGP10 Series

Catalog

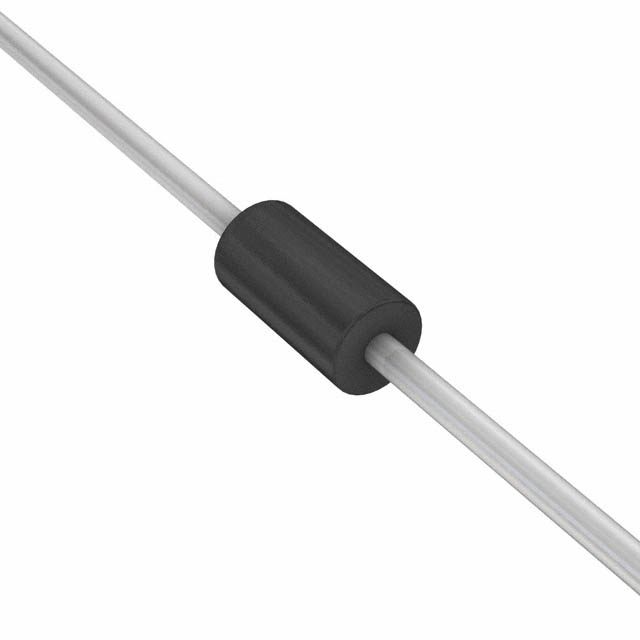

DIODE GEN PURP 100V 1A DO204AL

Part	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Technology	Speed	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Qualification	Mounting Type	Grade
Vishay General Semiconductor - Diodes Division FGP10BHE3/73	1 A	100 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA	AEC-Q101	Through Hole	Automotive
Vishay General Semiconductor - Diodes Division FGP10DHE3/73	1 A	200 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA	AEC-Q101	Through Hole	Automotive
Vishay General Semiconductor - Diodes Division FGP10D-E3/73	1 A	200 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA		Through Hole
Vishay General Semiconductor - Diodes Division FGP10D-E3/54	1 A	200 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA		Through Hole
Vishay General Semiconductor - Diodes Division FGP10D-M3/73	1 A	200 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA		Through Hole
Vishay General Semiconductor - Diodes Division FGP10B-E3/54	1 A	100 V	175 ░C	-65 C	DO-204AL (DO-41)	Standard	200 mA 500 ns	25 pF	35 ns	950 mV	Axial DO-204AL DO-41	2 µA		Through Hole
