6609049 Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Approval Agency	Voltage - Rated AC	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Current	Mounting Type	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Filter Type	Inductance

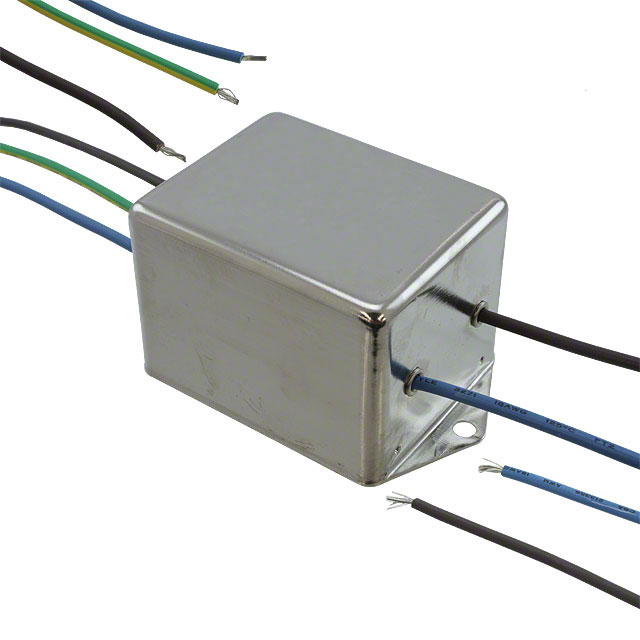

TE Connectivity Corcom Filters 6609049-4	CSA UR VDE	250 V	40 °C	-10 °C	Single Stage	3 A	Chassis Mount	General Purpose	60 Hz	50 Hz	IEC 320-C14 Wire Leads	Single Phase
TE Connectivity Corcom Filters 6609049-2	CSA UR VDE	250 V	40 °C	-10 °C	Two Stage	3 A	Chassis Mount	General Purpose	60 Hz	50 Hz	Wire Leads	Single Phase	32.18 mH

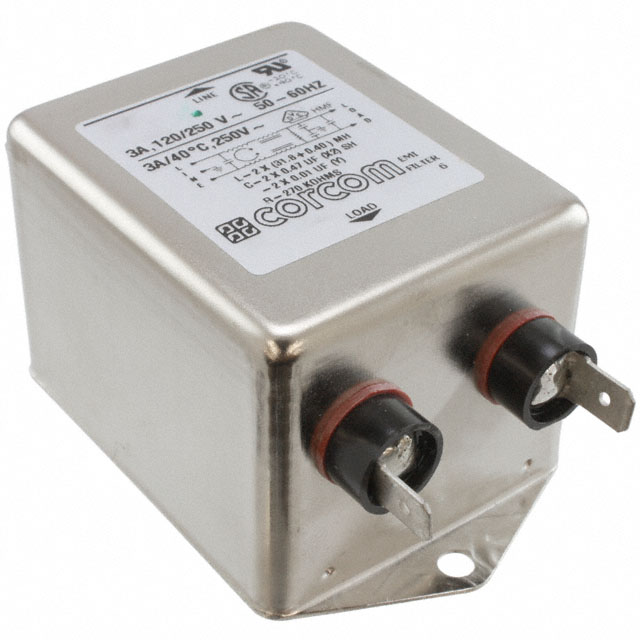

TE Connectivity Corcom Filters 6609049-1	CSA UR VDE	250 V	40 °C	-10 °C	Two Stage	3 A	Chassis Mount	General Purpose	60 Hz	50 Hz	Quick Connect	Single Phase	32.18 mH
