MOC810 Series

Catalog

OPTOISOLATOR 5.3KV TRANS 6-SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Voltage - Isolation	Mounting Type	Supplier Device Package	Current Transfer Ratio (Max)	Output Type	Current Transfer Ratio (Min) [Min]	Input Type	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Turn On / Turn Off Time (Typ)	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Number of Channels	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min)	Package / Case	Package / Case	Package / Case
ON Semiconductor MOC81083SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD	600 %	1.81 mOhm	250 %	DC	70 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs
ON Semiconductor MOC8102SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD	117 %	1.81 mOhm	73 %	DC	30 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs
ON Semiconductor MOC81053SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD		1.81 mOhm		DC	30 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs	133 %	65 %
ON Semiconductor MOC8108300W	100 °C	-55 °C	50 mA	5300 Vrms	Through Hole	6-DIP	600 %	1.81 mOhm	250 %	DC	70 V	1.15 V	6-DIP	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs			10.16 mm	10.16 mm

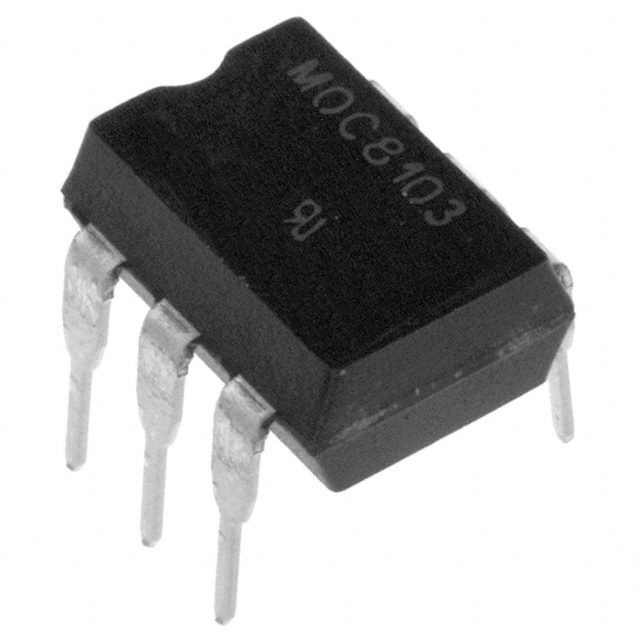

ON Semiconductor MOC8103	100 °C	-55 °C	50 mA	5300 Vrms	Through Hole	6-DIP	173 %	1.81 mOhm	108 %	DC	30 V	1.15 V	6-DIP	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs				7.62 mm	0.3 in
ON Semiconductor MOC8107SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD	300 %	1.81 mOhm	100 %	DC	70 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs
ON Semiconductor MOC8103SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD	173 %	1.81 mOhm	108 %	DC	30 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs
ON Semiconductor MOC8101	100 °C	-55 °C	50 mA	5300 Vrms	Through Hole	6-DIP	80 %	1.81 mOhm	50 %	DC	30 V	1.15 V	6-DIP	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs				7.62 mm	0.3 in

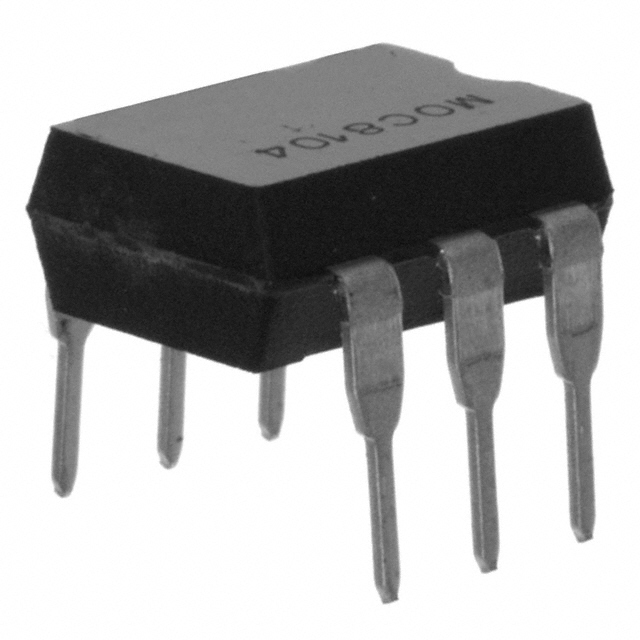

ON Semiconductor MOC8104300	100 °C	-55 °C	50 mA	5300 Vrms	Through Hole	6-DIP	256 %	1.81 mOhm	160 %	DC	30 V	1.15 V	6-DIP	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs				7.62 mm	0.3 in
ON Semiconductor MOC81023SD	100 °C	-55 °C	50 mA	5300 Vrms	Surface Mount	6-SMD	117 %	1.81 mOhm	73 %	DC	30 V	1.15 V	6-SMD Gull Wing	2 µs 3 µs	400 mV	100 mA	1	1 µs	2 µs
