346-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RCPT 47POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Contact Material | Contact Shape | Contact Finish - Post | Connector Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Voltage Rating | Voltage Rating | Termination | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Number of Rows | Contact Type | Contact Finish - Mating | Fastening Type | Number of Positions | Contact Material - Mating | Pitch - Post | Pitch - Post | Termination Post Length | Termination Post Length | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Contact Material - Post | Type | Housing Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | Tin-Lead | Receptacle | UL94 V-0 | 0.76 Ám | 30 Áin | 3 A | 100 V | 150 VDC | Press-Fit | Black | Through Hole | 0.1 " | 2.54 mm | All | -55 C | 125 °C | 3.05 mm | 0.12 in | 1 | Female Socket | Gold | Push-Pull | 47 | ||||||||||||

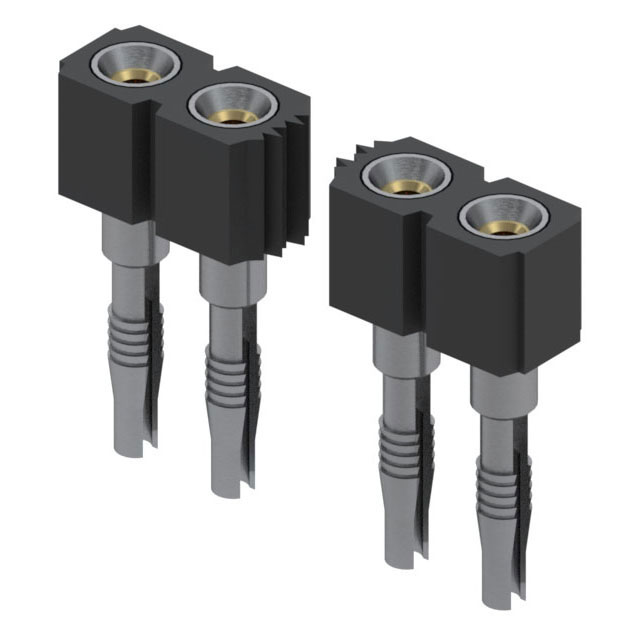

![346-[43,93(9)]-1xx-41-013000](https://cdn.zenode.ai/blobs/documents/6aebebfc05cb4aed212f41407e35070ac710b758eeb756344bb27739796d5a03.jpeg "346-[43,93(9)]-1xx-41-013000"){kind=small} Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 53 | 1 | 53 | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 33 | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | Tin-Lead | Receptacle | UL94 V-0 | 0.76 Ám | 30 Áin | 3 A | 100 V | 150 VDC | Press-Fit | Black | Through Hole | 0.1 " | 2.54 mm | All | -55 C | 125 °C | 3.05 mm | 0.12 in | 1 | Female Socket | Gold | Push-Pull | 13 | ||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 21 | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | Tin-Lead | Receptacle | UL94 V-0 | 0.76 Ám | 30 Áin | 3 A | 100 V | 150 VDC | Press-Fit | Black | Through Hole | 0.1 " | 2.54 mm | All | -55 C | 125 °C | 3.05 mm | 0.12 in | 1 | Female Socket | Gold | Push-Pull | 48 | ||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 17 | 1 | 17 | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 60 | 1 | 60 | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | Tin-Lead | Receptacle | UL94 V-0 | 0.76 Ám | 30 Áin | 3 A | 100 V | 150 VDC | Press-Fit | Black | Through Hole | 0.1 " | 2.54 mm | All | -55 C | 125 °C | 3.05 mm | 0.12 in | 1 | Female Socket | Gold | Push-Pull | 41 | ||||||||||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Tin-Lead | 0.76 Ám | 30 Áin | 3 A | Press-Fit | Through Hole | 0.1 " | 2.54 mm | -55 C | 125 °C | Gold | Beryllium Copper | 0.1 in | 2.54 mm | 0.175 in | 4.45 mm | 45 positions | Brass Alloy | SIP | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester |
