UL PC F Series

Catalog

BOX PLAS GRY/CLR 9.1"L X 3.1"W

Part	Material	Height	Height	Color	Design	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Height [z]	Height [z]
FIBOX Enclosures UL PC F 85 T	Plastic Polycarbonate	3.3 in	83.82 mm	Clear Cover/Door Gray	Cover Included	28.2 in²	182 cm²	Box	78.74 mm	3.1 in	231.14 mm	9.1 in	IP66 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL 508
FIBOX Enclosures UL PC F 65 T	Plastic Polycarbonate			Clear Cover/Door Gray	Cover Included	28.2 in²	182 cm²	Box	78.74 mm	3.1 in	231.14 mm	9.1 in	IP66 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL 508	66.04 mm	66.04 mm
FIBOX Enclosures UL PC F 65 G	Plastic Polycarbonate			Gray	Cover Included	28.2 in²	182 cm²	Box	78.74 mm	3.1 in	231.14 mm	9.1 in	IP66 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL 508	66.04 mm	66.04 mm

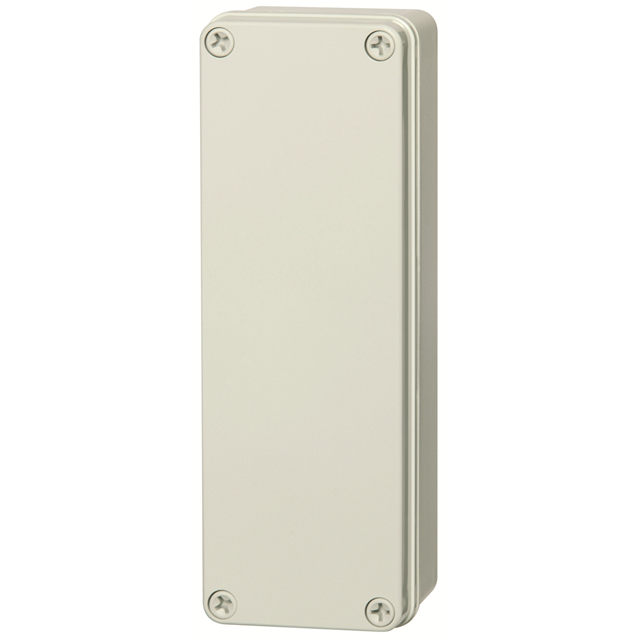

FIBOX Enclosures UL PC F 85 G	Plastic Polycarbonate	3.3 in	83.82 mm	Gray	Cover Included	28.2 in²	182 cm²	Box	78.74 mm	3.1 in	231.14 mm	9.1 in	IP66 IP67 UL 508
