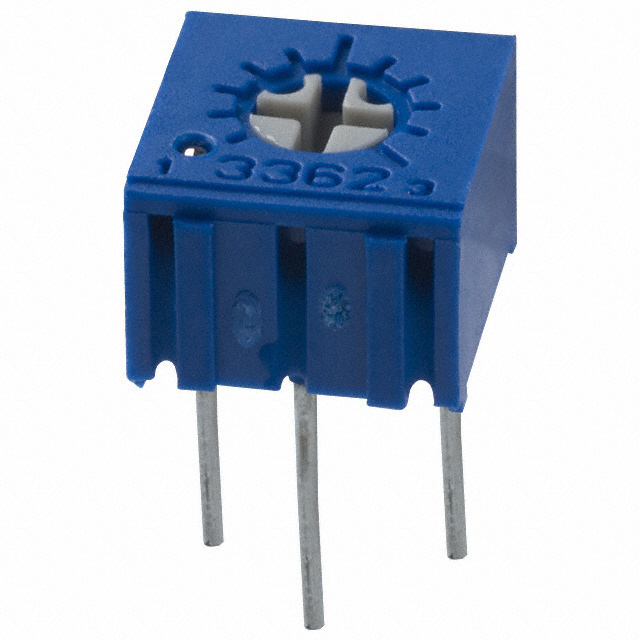

3362R Series

Catalog

TRIMMER - 1/4 SQ ST CERMET ROHS COMPLIANT: NO

Part	Mounting Type	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistance	Number of Turns	Termination Style	Temperature Coefficient	Resistive Material	Power (Watts)	Power (Watts)	Adjustment Type
Bourns Inc. 3362R-1-304	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	300 kOhms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-503	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	50000 Ohms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-100	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	10 Ohms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-222LF	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	2200 Ohms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-502	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	5 kOhms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-473	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	47000 Ohms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-504LF	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm		1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-502LF	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	5 kOhms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-254	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	250000 Ohms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
Bourns Inc. 3362R-1-105LF	Through Hole	10 %	6.99 mm	0.275 in	0.26 in	6.6 mm	1 MOhms	1	PC Pins	100 ppm/°C	Cermet	0.5 W	0.5 W	Top Adjustment
