3252P Series

Catalog

TRIMMER-1/2IN SQ MT CERMET /TUBE PACKAGING

Part	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistive Material	Number of Turns	Resistance	Power (Watts)	Power (Watts)	Mounting Type	Termination Style	Temperature Coefficient	Adjustment Type

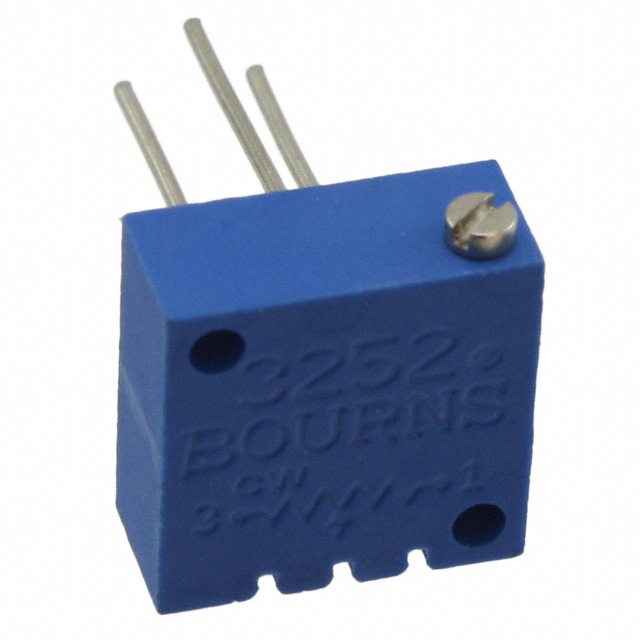

Bourns Inc. 3252P-1-103	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	10000 Ohms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-501	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	0.5 kOhms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-503LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	50000 Ohms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-104LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	100 kOhms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-501LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	0.5 kOhms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-204	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	200000 Ohms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-255LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	2.5 MOhms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-504	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25		3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-500LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	50 Ohms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
Bourns Inc. 3252P-1-203LF	10 %	12.7 mm	0.5 "	5.59 mm	0.22 in	Cermet	25	20 kOhms	3/4W	0.75 W	Chassis Mount	PC Pins	100 ppm/°C	Side Adjustment
