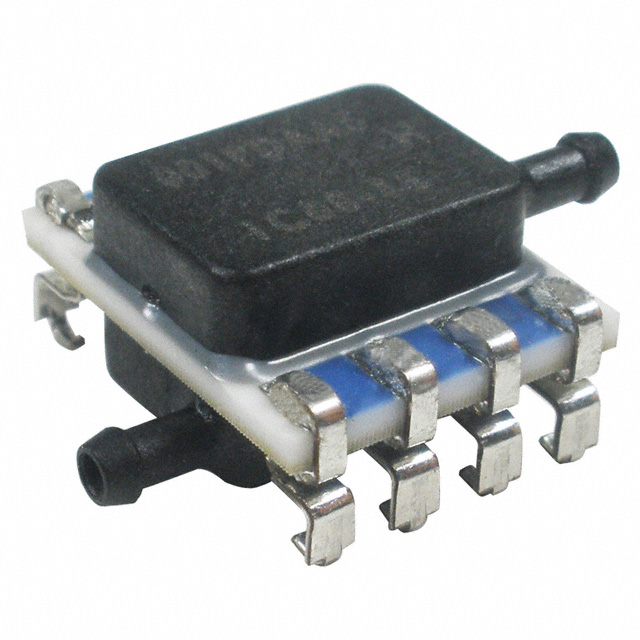

HSCMDRT Series

Catalog

SENSOR 100PSIG 0.19" 2.97V 8SMD

Part	Operating Pressure	Operating Pressure	Accuracy	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Mounting Type	Pressure Type	Output Type	Package / Case	Termination Style	Features	Supplier Device Package	Output	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCMDRT100PGAA3	689.48 kPa	100 PSI	0.25 %	Barbed	3.6 V	3 V	Board Mount	250 PSI	1723.69 kPa	85 °C	-20 C	0.33 V	2.97 V	Surface Mount	Vented Gauge	Analog Voltage	8-SMD Dual Ports J-Lead Opposite Sides	J Lead	Amplified Output Temperature Compensated	8-SMD
Honeywell Sensing and Productivity Solutions HSCMDRT060MDSA3	6 kPa	0.87 PSI	0.25 %	Barbed	3.33 V	3.27 V	Board Mount			85 °C	-20 C			Surface Mount	Differential	SPI	8-SMD Dual Ports J-Lead Opposite Sides	J Lead	Amplified Output Temperature Compensated	8-SMD	12 b	85 kPa	12.33 PSI
