FSC-P Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 4A 250VAC 5X20MM

Part	DC Cold Resistance	Fuse Type	Response Time	Breaking Capacity @ Rated Voltage	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case [y]	Package / Case	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage Rating - AC	Current Rating (Amps)	Mounting Type
OptiFuse FSC-P-4A	15.8 Ohms	Cartridge Glass	Fast Blow	200 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	4 A	Through Hole
OptiFuse FSC-P-3A	9.722 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	3 A	Through Hole
OptiFuse FSC-P-10A	171 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	10 A	Through Hole

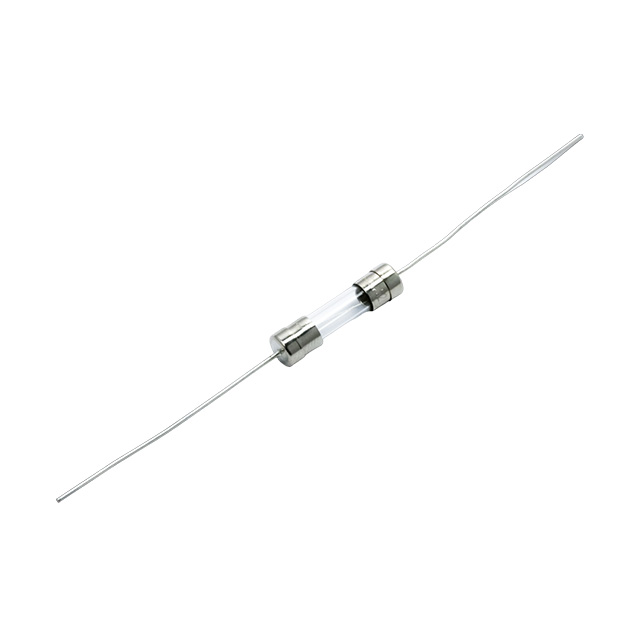

OptiFuse FSC-P-1.6A	3.45 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	1.6 A	Through Hole
OptiFuse FSC-P-8A	100 Ohms	Cartridge Glass	Fast Blow	200 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	8 A	Through Hole
OptiFuse FSC-P-3.5A	13.52 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	3.5 A	Through Hole
OptiFuse FSC-P-6.3A	59.24 Ohms	Cartridge Glass	Fast Blow	200 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	6.3 A	Through Hole
OptiFuse FSC-P-1A	1.4 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	1 A	Through Hole
OptiFuse FSC-P-2.5A	5.761 Ohms	Cartridge Glass	Fast Blow	100 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	2.5 A	Through Hole
OptiFuse FSC-P-5A	29.11 Ohms	Cartridge Glass	Fast Blow	200 A	0.827 "	0.217 in	5.5 mm	21 mm	20 mm	Axial	5 mm	90 °C	-55 C	cULus UL 248	250 V	5 A	Through Hole
