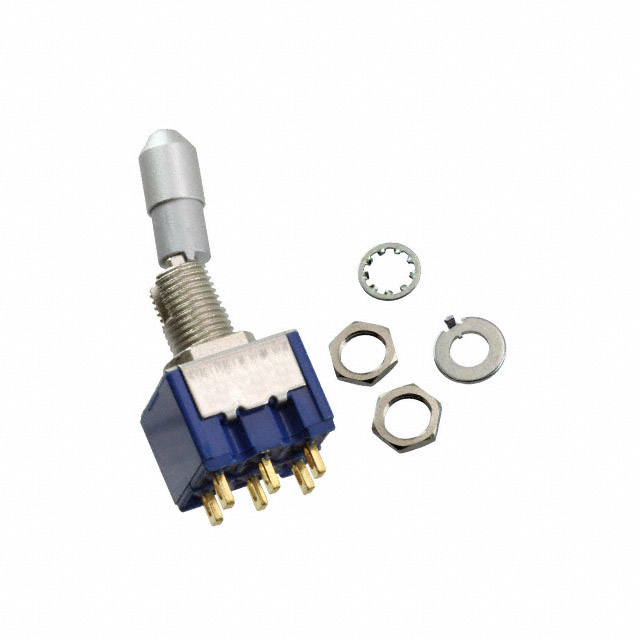

8E2021 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Switch Function | Circuit | Features | Voltage Rating - AC | Actuator Length [x] | Mounting Type | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | 30 V | 4 A 6 A | Solder Lug | 85 °C | -30 ░C | 1/4-40 | On-Off-On | DPDT | Sealed - Flux Protection | 125 V | 16.5 mm | Panel Mount | Locking Lever | 6.5 mm | Non-Illuminated |
 Nidec Components Corporation | 50000 Cycles | 20 V | 25 mA | Solder Lug | 85 °C | -20 ░C | 1/4-40 | On-Off-On | DPDT | Sealed - Flux Protection | 16.5 mm | Panel Mount | Locking Lever | 6.5 mm | Non-Illuminated |
