BAT54XV2(LEGACY%20FAIRCHILD) Series

200 mA, 30 V, Dual Schottky Diode, Common Cathode

Catalog

200 mA, 30 V, Dual Schottky Diode, Common Cathode

Part	Capacitance @ Vr, F	Speed	Speed	Technology	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Supplier Device Package	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction	Qualification	Grade
ON Semiconductor BAT54_ND87Z	10 pF	Any Speed	200 mA	Schottky	SC-59 SOT-23-3 TO-236-3	800 mV	2 µA	5 ns	30 V	200 mA	150 °C	-55 °C	Surface Mount	SOT-23-3
ON Semiconductor BAT54CTT1G		Any Speed	200 mA	Schottky	SC-75 SOT-416	800 mV	2 µA	5 ns	30 V		125 °C	-55 °C	Surface Mount	SC-75 SOT-416	1 Pair Common Cathode	200 mA
ON Semiconductor BAT54ST		Any Speed	200 mA	Schottky	SOT-523	1 V	2 µA	5 ns	30 V				Surface Mount	SOT-523	1 Pair Series Connection	100 mA	125 °C
ON Semiconductor NSVBAT54HT1G	10 pF	Any Speed	200 mA	Schottky	SC-76 SOD-323	800 mV	2 µA	5 ns	30 V	200 mA	150 °C	-55 °C	Surface Mount	SOD-323				AEC-Q101	Automotive
ON Semiconductor BAT54A_L99Z		Any Speed	200 mA	Schottky	SC-59 SOT-23-3 TO-236-3	800 mV	2 µA	5 ns	30 V		150 °C	-55 °C	Surface Mount	SOT-23-3	1 Pair Common Anode	200 mA
ON Semiconductor NSVBAT54SWT1G		Any Speed	200 mA	Schottky	SC-70 SOT-323	800 mV	2 µA	5 ns	30 V		150 °C	-55 °C	Surface Mount		1 Pair Series Connection	200 mA
ON Semiconductor BAT54-D87Z	10 pF	Any Speed	200 mA	Schottky	SC-59 SOT-23-3 TO-236-3	800 mV	2 µA	5 ns	30 V	200 mA	150 °C	-55 °C	Surface Mount	SOT-23-3
ON Semiconductor SBAT54T1G	10 pF	Any Speed	200 mA	Schottky	SOD-123	800 mV	2 µA	5 ns	30 V	200 mA	125 °C	-55 °C	Surface Mount	SOD-123				AEC-Q101	Automotive

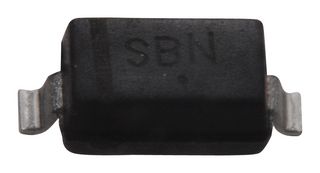

ON Semiconductor BAT54T1G	10 pF	Any Speed	200 mA	Schottky	SOD-123	800 mV	2 µA	5 ns	30 V	200 mA	125 °C	-55 °C	Surface Mount	SOD-123
ON Semiconductor BAT54WT1G	10 pF	Any Speed	200 mA	Schottky	SC-70 SOT-323	800 mV	2 µA	5 ns	30 V	200 mA	125 °C	-55 °C	Surface Mount

Catalog

200 mA, 30 V, Dual Schottky Diode, Common Cathode

Key Features

• Extremely Fast Switching Speed

• Extremely Low Forward Voltage Typically with a VF= 350 mV @ IF= 10 mAdc

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC Qualified and PPAP Capable

• These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Description

The Schottky diode is designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. The miniature surface mount package is excellent for hand held and portable applications where space is limited.Replacement Active Part Number:BAT54XV2
