51S105 Series
Manufacturer: Rosenberger
Beta
⌘K

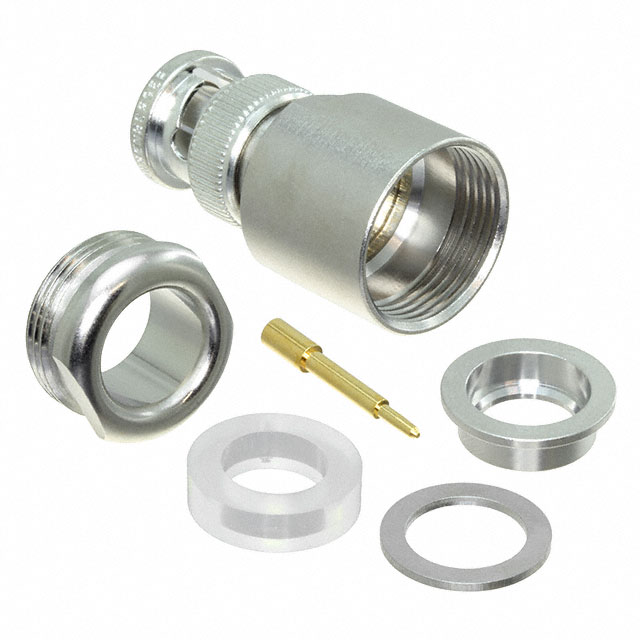

CONN BNC PLUG STR 50OHM SOLDER
| Part | Voltage Rating | Mating Cycles | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Includes | Body Material | Center Contact Plating | Center Contact Material | Fastening Type | Cable Group | Shield Termination | Connector Type | Mounting Type | Connector Style | Impedance | Frequency - Max [Max] | Contact Termination | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 400 V | 500 | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | White Bronze | 1 | Brass | Gold | Brass | Bayonet Lock | 214 RG-213 | Clamp | Plug Male Pin | Free Hanging (In-Line) | BNC | 50 Ohms | 10 GHz | Solder | Silver | 1 |
