PRPN052 Series

Catalog

CONN HEADER SMD 10POS 2MM

Part	Insulation Material	Insulation Height	Insulation Height	Termination	Number of Positions	Contact Finish Thickness - Post	Number of Positions Loaded	Material Flammability Rating	Features	Contact Material	Fastening Type	Style	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Shrouding	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Mounting Type	Number of Rows [custom]	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PRPN052MAMP	Polyester	0.059 in	1.5 mm	Solder	10	Flash	All	UL94 V-0	Board Guide	Brass	Push-Pull	Board to Board Cable	Header	Male Pin	Flash	Gold	Gold	Unshrouded	4 mm	0.157 in	2 mm	0.079 in	-40 C	105 ░C	Black	Surface Mount	2	Square	0.079 "	2 mm
Sullins Connector Solutions PRPN052MAMS	Polyester	0.059 in	1.5 mm	Solder	10	Flash	All	UL94 V-0		Brass	Push-Pull	Board to Board Cable	Header	Male Pin	Flash	Gold	Gold	Unshrouded	4 mm	0.157 in	2 mm	0.079 in	-40 C	105 ░C	Black	Surface Mount	2	Square	0.079 "	2 mm

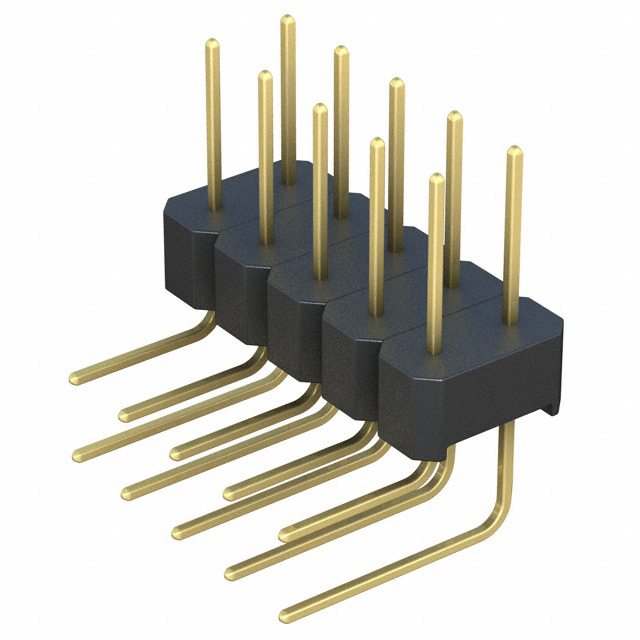

Sullins Connector Solutions PRPN052PARN	Polyester			Solder	10	Flash	All	UL94 V-0		Brass	Push-Pull	Board to Board Cable	Header	Male Pin	Flash	Gold	Gold	Unshrouded	4 mm	0.157 in	2 mm	0.079 in	-40 C	105 ░C	Black	Right Angle Through Hole	2	Square	0.079 "	2 mm	0.11 in	2.79 mm	4 mm	0.157 in
