MLH03K Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR AMP 3000PSI 4-20MA OUT

Part	Operating Pressure [x]	Operating Pressure [x]	Package / Case	Pressure Type	Output Type	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Features	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Accuracy	Port Size	Port Size	Port Size
Honeywell Sensing and Productivity Solutions MLH03KPGB01B	20684.27 kPa	3000 PSI	Cylinder Metal	Vented Gauge	Analog Current	NPT	0.25 "	6.35 mm	Male	30 VDC	9.5 V	Industrial Automation	6000 PSI	41368.54 kPa	Packard Metripak 150	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	20 mA	4 mA	0.25 %
Honeywell Sensing and Productivity Solutions MLH03KPSB01A	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Voltage	NPT	0.25 "	6.35 mm	Male	6 V	5 V	Industrial Automation	6000 PSI	41368.54 kPa	Packard Metripak 150	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	4.5 V	0.5 V	0.25 %
Honeywell Sensing and Productivity Solutions MLH03KPSL01B	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Current	NPT	0.25 "	6.35 mm	Male	30 VDC	9.5 V	Industrial Automation	6000 PSI	41368.54 kPa	Cable 1m	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	20 mA	4 mA	0.25 %
Honeywell Sensing and Productivity Solutions MLH03KPSB51B

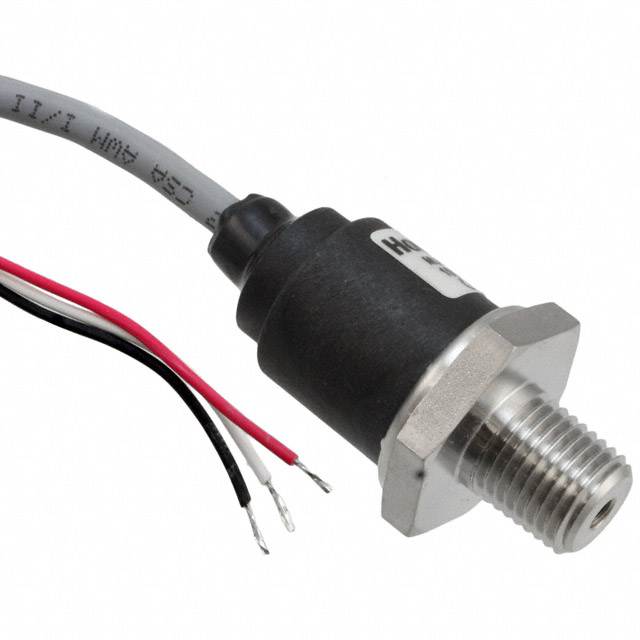

Honeywell Sensing and Productivity Solutions MLH03KPSL01G	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Voltage	NPT	0.25 "	6.35 mm	Male	30 VDC	8 V	Industrial Automation	6000 PSI	41368.54 kPa	Cable 1m	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	5 V	1 V	0.25 %

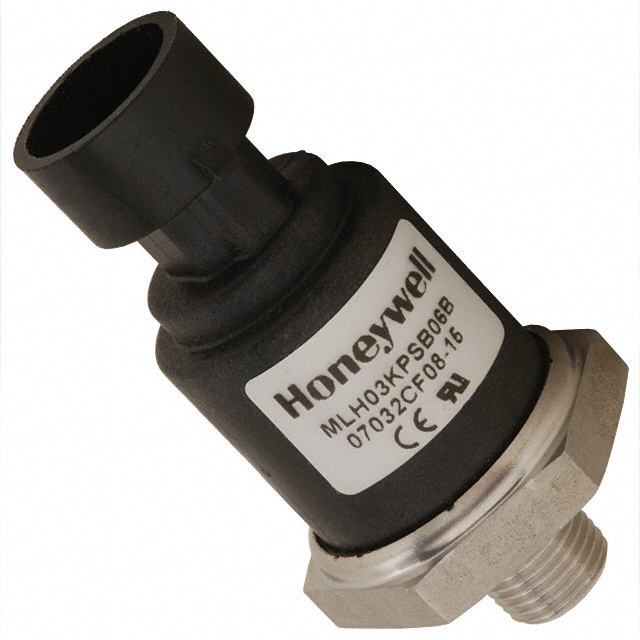

Honeywell Sensing and Productivity Solutions MLH03KPSB06A	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Voltage					6 V	5 V	Industrial Automation	6000 PSI	41368.54 kPa	Packard Metripak 150	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	4.5 V	0.5 V	0.25 %	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions MLH03KPSB01B	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Current	NPT	0.25 "	6.35 mm	Male	30 VDC	9.5 V	Industrial Automation	6000 PSI	41368.54 kPa	Packard Metripak 150	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	20 mA	4 mA	0.25 %
Honeywell Sensing and Productivity Solutions MLH03KPSB51A	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Voltage							Board Mount	6000 PSI	41368.54 kPa	Connector	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	4.5 V	0.5 V	0.25 %		0.4375 " 11.11 mm	Male UNF
Honeywell Sensing and Productivity Solutions MLH03KPSL01A	20684.27 kPa	3000 PSI	Cylinder Metal	Sealed Gauge	Analog Voltage	NPT	0.25 "	6.35 mm	Male	6 V	5 V	Industrial Automation	6000 PSI	41368.54 kPa	Cable 1m	Amplified Output Temperature Compensated	Threaded	125 °C	-40 °C	4.5 V	0.5 V	0.25 %
Honeywell Sensing and Productivity Solutions MLH03KPSB01D
