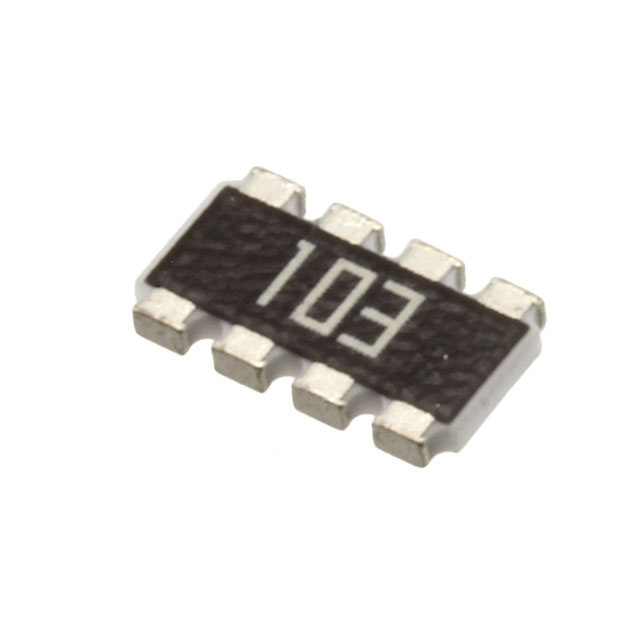

YC324-JK Series

Manufacturer: YAGEO

Catalog

RES ARRAY 4 RES 620K OHM 2012

Part	Mounting Type	Temperature Coefficient	Grade	Circuit Type	Number of Resistors	Qualification	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Pins	Power Per Element	Resistance (Ohms) [custom]	Resistance (Ohms)	Resistance (Ohms)
YAGEO YC324-JK-07620KL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW	620 kOhms
YAGEO YC324-JK-071K3L	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW	1.3 kOhms
YAGEO YC324-JK-0716RL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW	16 Ohms
YAGEO YC324-JK-07240KL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW		240k
YAGEO YC324-JK-07300KL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW		300k
YAGEO YC324-JK-0722RL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW			22 Ohms
YAGEO YC324-JK-07200KL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW
YAGEO YC324-JK-076K8L	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW		6.8k
YAGEO YC324-JK-07180KL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW			180 kOhms
YAGEO YC324-JK-0712RL	Surface Mount	200 ppm/°C	Automotive	Isolated	4	AEC-Q200	5 %	0.7 mm	0.028 "	DDRAM SDRAM	155 C	-55 C	2012 Convex Long Side Terminals	5.08 mm	0.126 in	0.2 in	3.2 mm	8	125 mW
