201201 Series

Manufacturer: Molex

Catalog

SPOT-ON WIRE-TO-BOARD HEADER WITH NAIL, 2.00MM PITCH, SINGLE ROW, VERTICAL, 16 CIRCUITS, WITH POTTING CAPABILITY, MATTE TIN (SN) PLATING, YELLOW

Part	Contact Material	Material Flammability Rating	Insulation Material	Applications	Fastening Type	Voltage Rating	Shrouding	Insulation Color	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Contact Type	Number of Rows	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Shape	Insulation Height	Insulation Height	Connector Type	Features	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Molex 2012010163	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Yellow	16	Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C

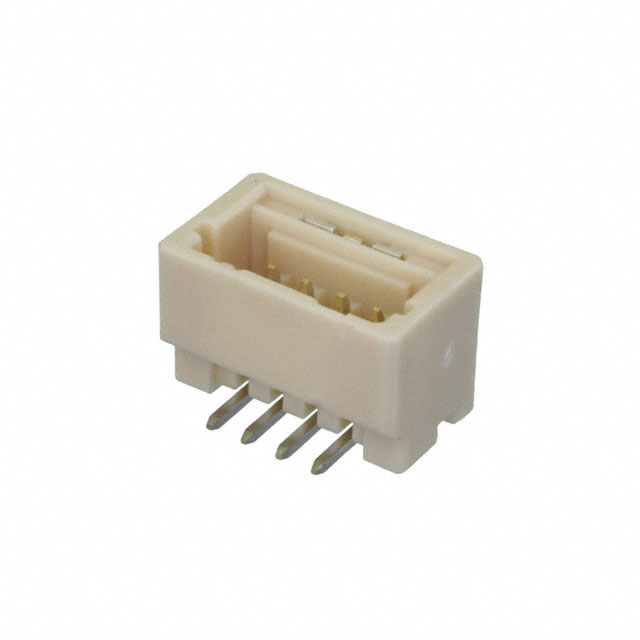

Molex 2012010040	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Natural		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	4
Molex 2012010150	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Natural		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	15
Molex 2012010020	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Natural		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	2
Molex 2012010133	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Yellow		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	13
Molex 2012010081	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Black		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	8
Molex 2012010061	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Black		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	6
Molex 2012010093	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Yellow		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	9
Molex 2012010151	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Black		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	15
Molex 2012010090	Brass	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose	Latch Holder	250 VDC	Shrouded - 4 Wall	Natural		Tin	All	Male Pin	1	Varies by Wire Gauge	1 çm	39.4 çin	Board to Cable/Wire	Square	9 mm	0.354 in	Header	Solder Retention	Solder	0.079 in	2 mm	1 µm	39.4 µin	Surface Mount	-40 °C	105 ░C	9
