SSI-LXH600 Series

Catalog

LED 5MM 12V GRN DIFF 6"LDS PNLMT

Part	Ratings	Type	Wavelength - Peak	Lens Transparency	Lamp Color	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lens Color	Viewing Angle	Millicandela Rating	Panel Cutout Shape	Voltage	Current	Lens Size	Lens Size	Current	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSI-LXH600GD12V150	DC	LED	565 nm	Diffused	Green	Round with Domed Top	6.35 mm	0.25 in	Green	60 °	20 mcd	Round	12 V	20 mA	5 mm	T-1 3/4
Lumex Opto/Components Inc. SSI-LXH600YD-150		LED	585 nm	Diffused	Yellow	Round with Domed Top	6.35 mm	0.25 in	Yellow	60 °	30 mcd	Round	2.1 V	30 mA	5 mm	T-1 3/4

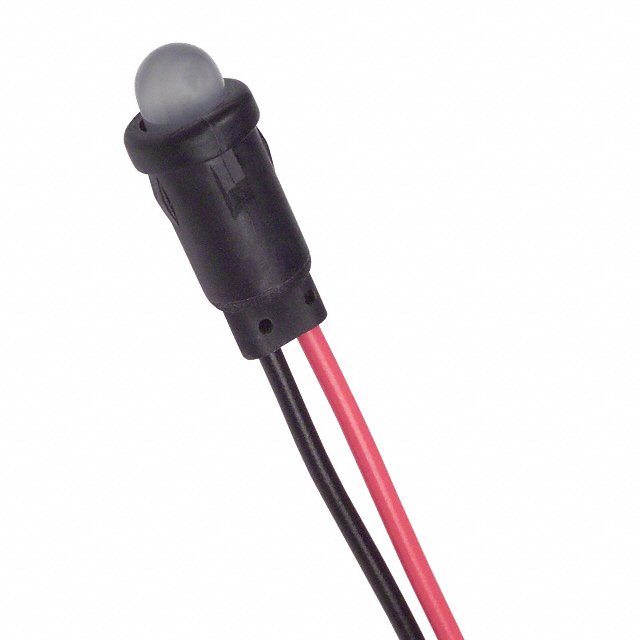

Lumex Opto/Components Inc. SSI-LXH600HGW-150		LED	565 nm 700 nm	Diffused	Green Red	Round with Domed Top	6.35 mm	0.25 in	White	60 °		Round	2 V 2.2 V		5 mm	T-1 3/4	25mA Green 25mA Red	6 mcd	25 mcd

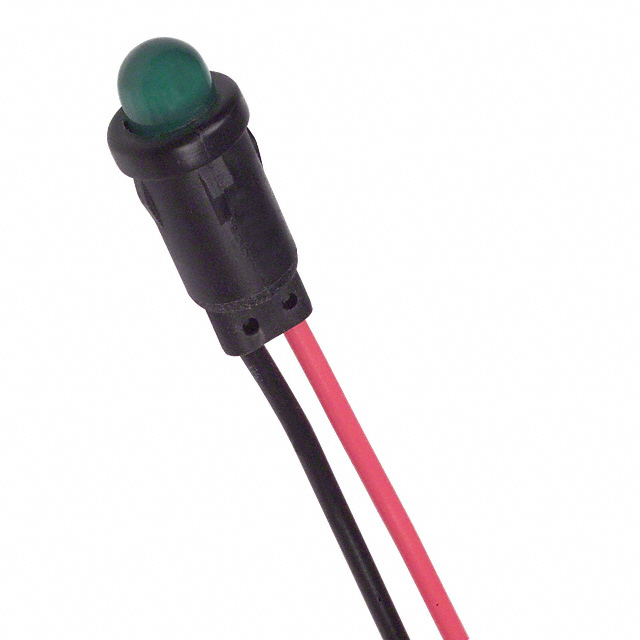

Lumex Opto/Components Inc. SSI-LXH600GD-150		LED	565 nm	Diffused	Green	Round with Domed Top	6.35 mm	0.25 in	Green	60 °	30 mcd	Round	2.2 V	25 mA	5 mm	T-1 3/4

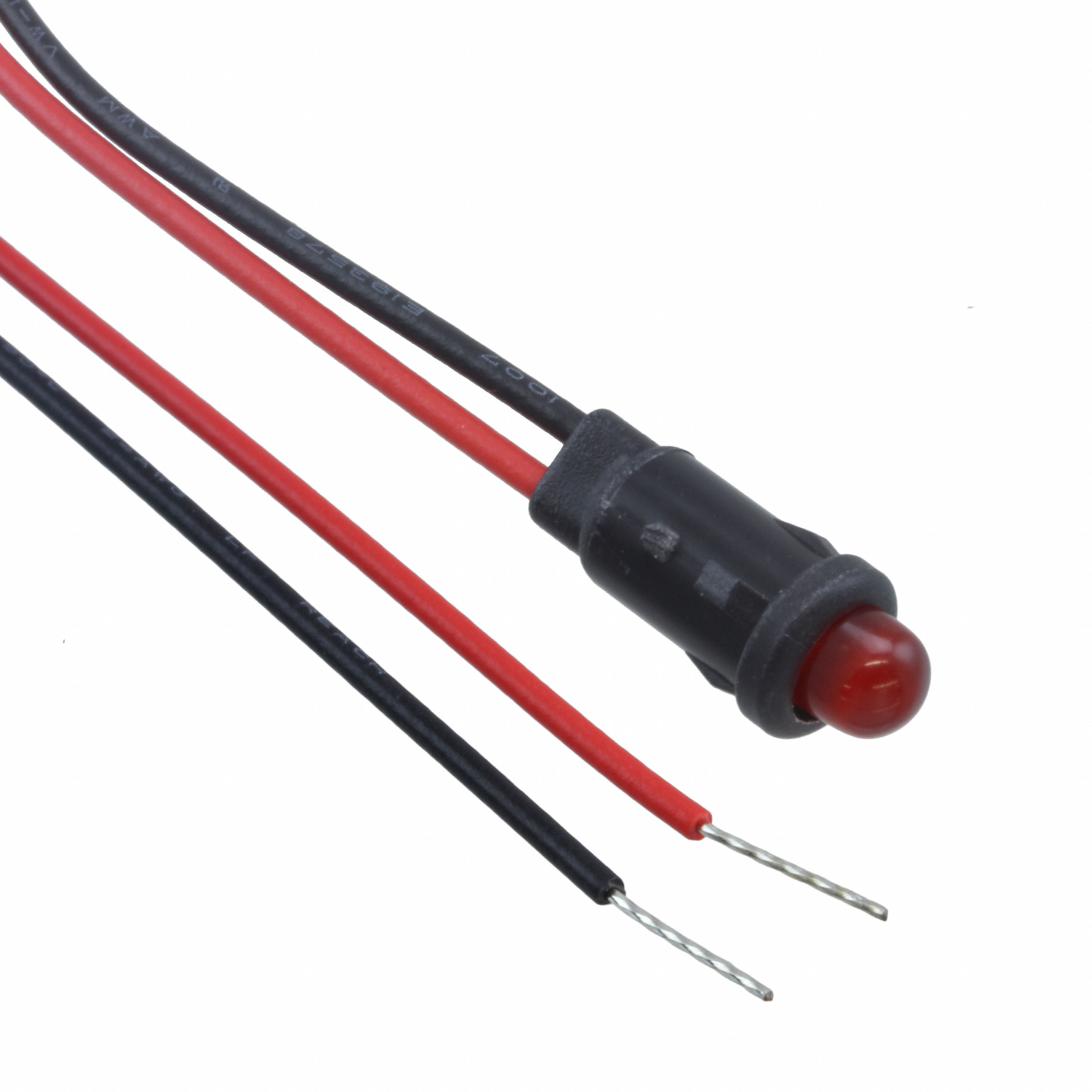

Lumex Opto/Components Inc. SSI-LXH600SID-150		LED	636 nm	Diffused	Red	Round with Domed Top	6.35 mm	0.25 in	Red	60 °	100 mcd	Round	2 V	30 mA	3 mm	T-1

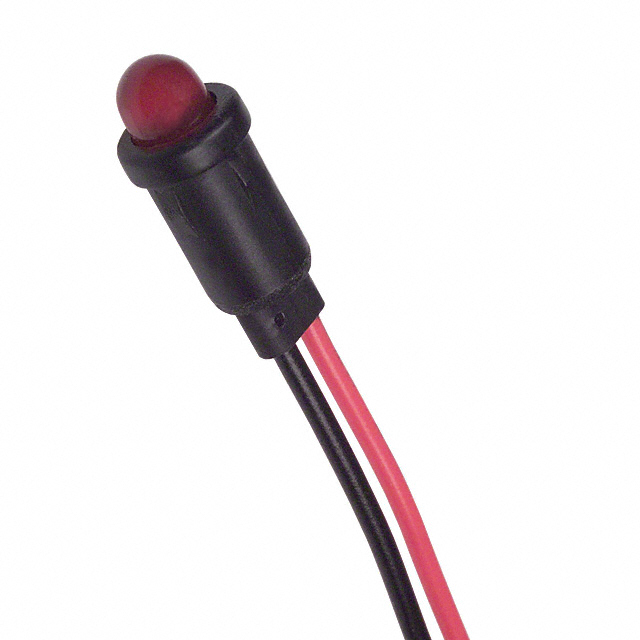

Lumex Opto/Components Inc. SSI-LXH600ID-150		LED	635 nm	Diffused	Red	Round with Domed Top	6.35 mm	0.25 in	Red	60 °	40 mcd	Round	2 V	30 mA	5 mm	T-1 3/4
Lumex Opto/Components Inc. SSI-LXH600GD-250

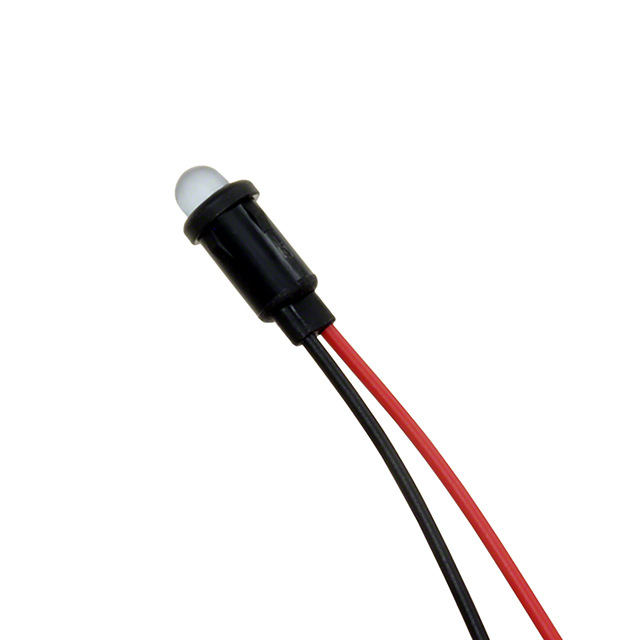

Lumex Opto/Components Inc. SSI-LXH600USBD-150		LED	470 nm	Diffused	Blue	Round with Domed Top	6.35 mm	0.25 in	Blue	60 °	60 mcd	Round	3.5 V	20 mA	5 mm	T-1 3/4
