R16102 Series

Catalog

N / STRAIGHT PLUG CLAMP TYPE CAB

Part	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insertion Loss	Mating Cycles	Body Finish	Body Material	Fastening Type	Impedance	Connector Style	Housing Color	Center Contact Material	Number of Ports	Contact Termination	Mounting Type	Ingress Protection	Connector Type	Cable Group	Frequency - Max [Max]	Shield Termination	Dielectric Material	Includes

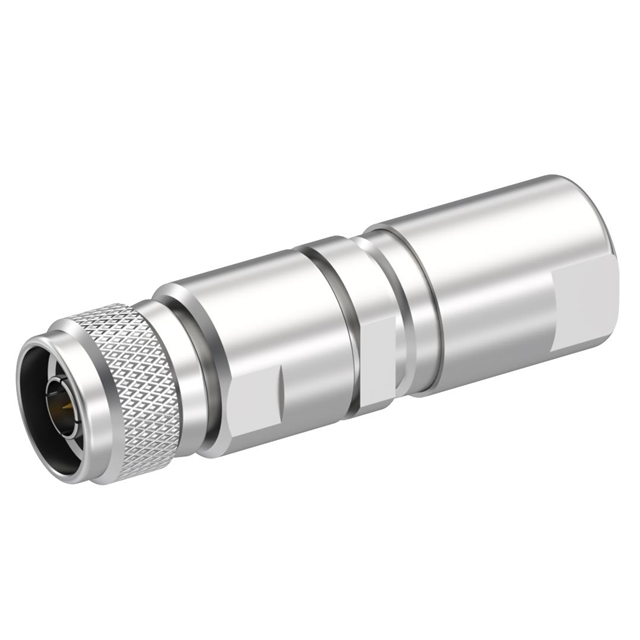

Radiall USA, Inc. R161028000	Gold	155 C	-55 C	1400 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	RG-217	11 GHz	Clamp
Radiall USA, Inc. R161022000	Gold	155 C	-55 C	1400 V		500		Brass	Threaded	50 Ohms	N Type		Brass	1	Solder	Free Hanging (In-Line)		Plug Male Pin		11 GHz	Clamp	Polytetrafluoroethylene (PTFE)	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Sleeve 1 Spacer 2 Washer
Radiall USA, Inc. R161027000W	Gold	155 C	-55 C	1400 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	RG-217	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161022000W	Gold	155 C	-55 C	335 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)

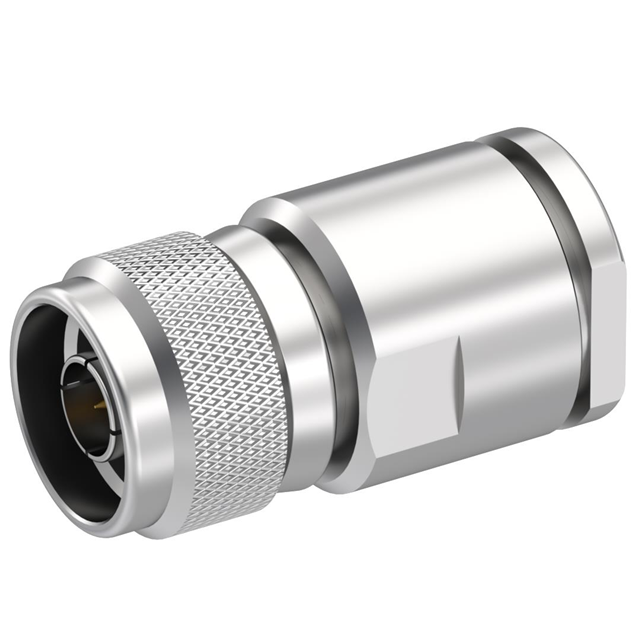

Radiall USA, Inc. R161027000	Gold	155 C	-55 C	1400 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	RG-217	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161020000W	Gold	155 C	-55 C	1400 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)

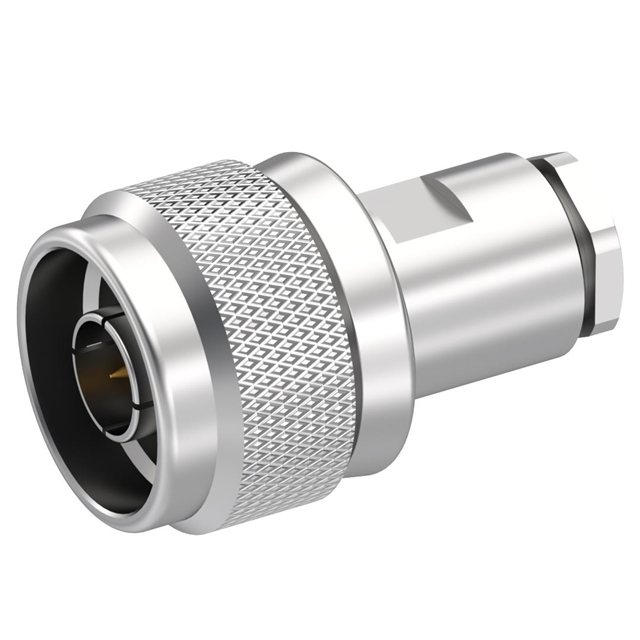

Radiall USA, Inc. R161020000	Gold	155 C	-55 C	1400 V	0.15 dB	500	White Bronze	Brass	Threaded	50 Ohms	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Plug Male Pin	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
