PPTC081 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 8POS 0.1 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Number of Positions	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Fastening Type	Insulation Height	Insulation Height	Contact Type	Number of Rows	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Contact Length - Post	Contact Length - Post

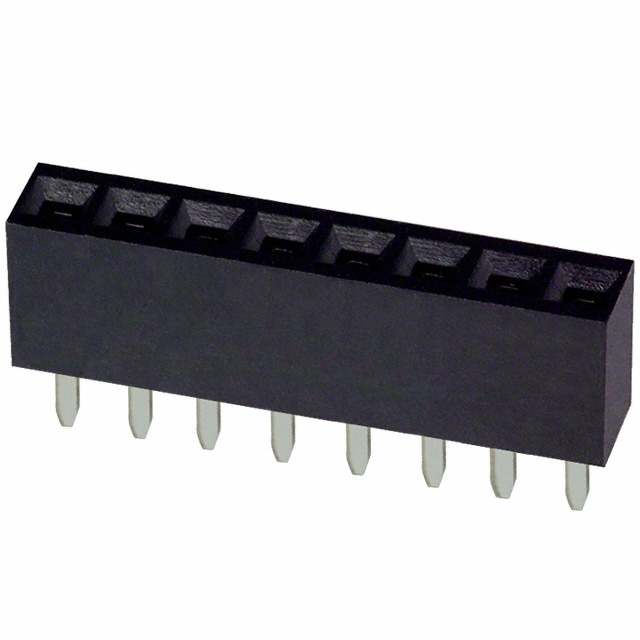

Sullins Connector Solutions PPTC081LFBN-RC	Phosphor Bronze	Polyester	Square	-40 C	105 ░C	Tin	Black	8	Solder	UL94 V-0	0.1 "	2.54 mm	Through Hole	Header	Push-Pull	0.335 "	8.51 mm	Female Socket	1	3 A	All	0.126 "	3.2 mm	250 V
Sullins Connector Solutions PPTC081KFXC	Phosphor Bronze	Polyester	Square	-40 C	105 ░C	Tin	Black	8	Solder	UL94 V-0	0.1 "	2.54 mm	Surface Mount	Header Top or Bottom Entry	Push-Pull	0.28 in	7.1 mm	Female Socket	1	3 A	All			250 V

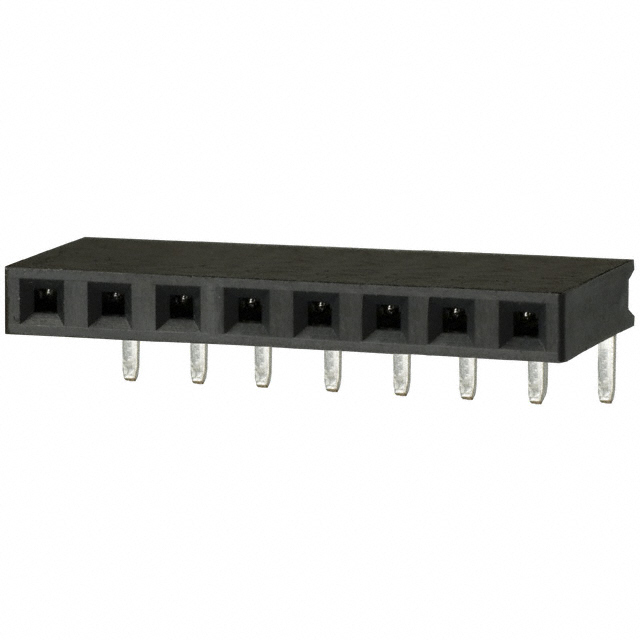

Sullins Connector Solutions PPTC081LGBN	Phosphor Bronze	Polyester	Square	-40 C	105 ░C	Tin	Black	8	Solder	UL94 V-0	0.1 "	2.54 mm	Right Angle Through Hole	Header	Push-Pull	0.1 in	2.54 mm	Female Socket	1	3 A	All			250 V	0.124 in	3.15 mm
Sullins Connector Solutions PPTC081LFBN	Phosphor Bronze	Polyester	Square	-40 C	105 ░C	Tin	Black	8	Solder	UL94 V-0	0.1 "	2.54 mm	Through Hole	Header	Push-Pull	0.335 "	8.51 mm	Female Socket	1	3 A	All	0.126 "	3.2 mm	250 V
Sullins Connector Solutions PPTC081LGBN-RC	Phosphor Bronze	Polyester	Square	-40 C	105 ░C	Tin	Black	8	Solder	UL94 V-0	0.1 "	2.54 mm	Right Angle Through Hole	Header	Push-Pull	0.1 in	2.54 mm	Female Socket	1	3 A	All			250 V	0.124 in	3.15 mm
