37 Series

Power Inductors - SMD 2.4 UH 12A

Manufacturer: Murata Electronics

Catalog

Power Inductors - SMD 2.4 UH 12A

Catalog

Power Inductors - SMD 2.4 UH 12A

Part	Shielding	Tolerance	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	DC Resistance (DCR)	Current - Saturation (Isat)	Inductance Frequency - Test	Current Rating (Amps)	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]
Murata Electronics 37242C	Unshielded	10 %	2.4 µH	0.268 "	6.8 mm	0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard	3 mOhm	16.5 A	100 kHz	12 Amps	Wirewound	Surface Mount	130 °C	-40 C
Murata Electronics 37142C	Unshielded	10 %	1.4 µH	0.268 "	6.8 mm	0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard		22 A	100 kHz	16 A	Wirewound	Surface Mount	130 °C	-40 C	1.9 mOhm

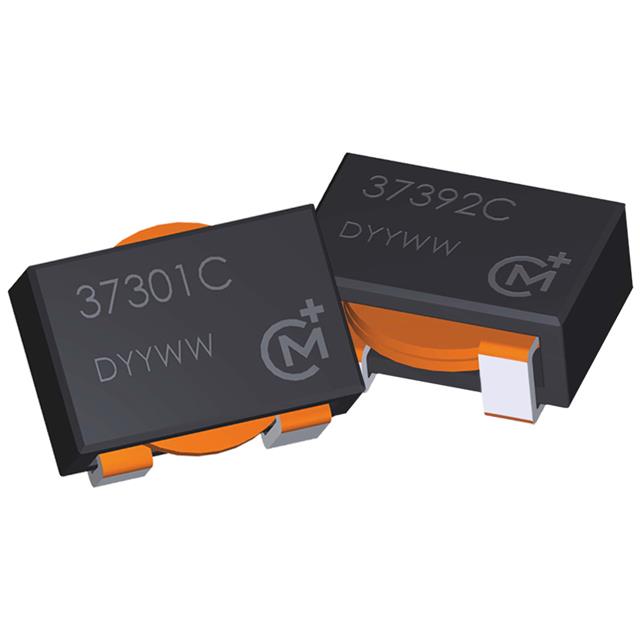

Murata Electronics 37112C	Unshielded	10 %	1.1 µH	0.228 "		0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard		20 A	100 kHz	14.5 A	Wirewound	Surface Mount	130 °C	-40 C	2.2 mOhm	5.8 mm
Murata Electronics 37301C	Unshielded	20 %	300 nH	0.228 "		0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard		39 A	100 kHz	19.5 A	Wirewound	Surface Mount	130 °C	-40 C	0.9 mOhm	5.8 mm
Murata Electronics 37302C	Unshielded	10 %	3 ÁH	0.228 "		0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard		13 A	100 kHz	9 A	Wirewound	Surface Mount	130 °C	-40 C	4.8 mOhm	5.8 mm

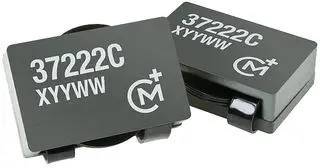

Murata Electronics 37392C	Unshielded	10 %	3.9 µH	0.268 "	6.8 mm	0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard	4.2 mOhm		100 kHz	10 A	Wirewound	Surface Mount	130 °C	-40 C
Murata Electronics 37222C	Unshielded	10 %	2.2 µH	0.228 "		0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard		15 A	100 kHz	11.5 A	Wirewound	Surface Mount	130 °C	-40 C	4 mOhm	5.8 mm
Murata Electronics 37951C	Unshielded	20 %	950 nH	0.268 "	6.8 mm	0.453 in	11.5 mm	14.5 mm	0.571 in	Nonstandard			100 kHz	18 A	Wirewound	Surface Mount	130 °C	-40 C	1.3 mOhm
