SWM30 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 12V 36W

Part	No Load Power Consumption	Form	Efficiency	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Current - Output (Max) [Max]	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Polarization	Standard Number	Approval Agency	Power (Watts)	Cord Length	Cord Length	Voltage - Output	Operating Temperature [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]

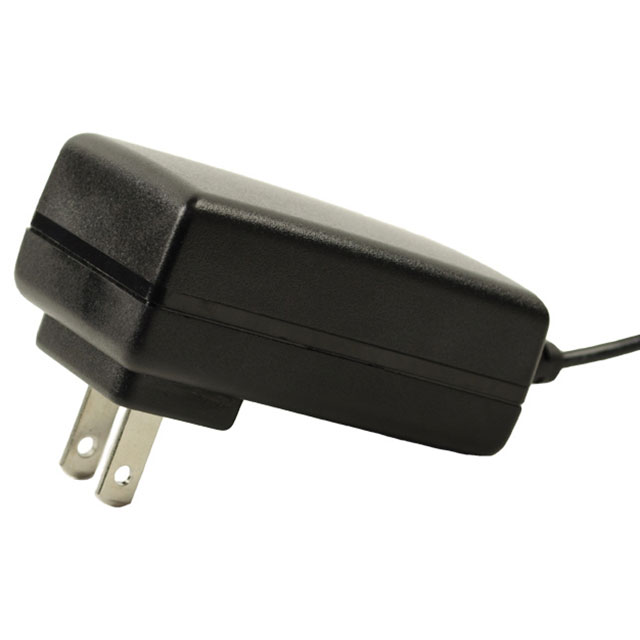

CUI Inc. SWM30-12-NV-P6	100 mW	Wall Mount	Level VI	NEMA 1-15P	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	3 A	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	36 W	1.2 m	47.2 in	12 V	40 °C

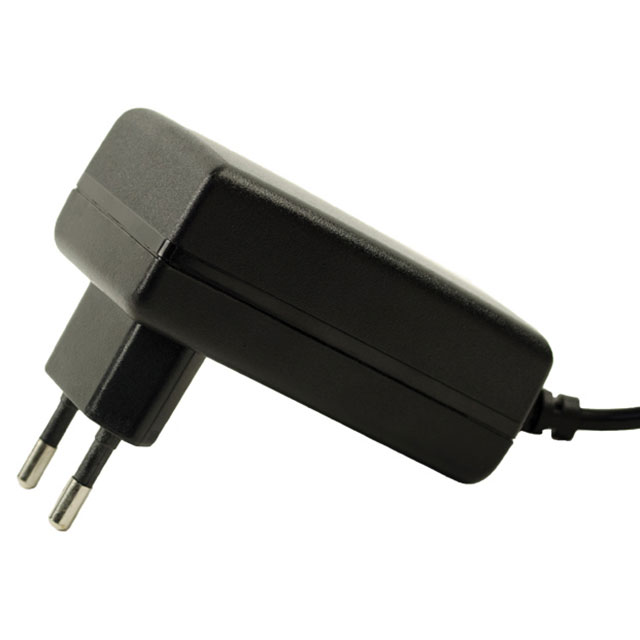

CUI Inc. SWM30-9-EV-P5R	75 mW	Wall Mount	CoC Tier 2 Level VI	CEE 7/16			Barrel Plug R/A	264 VAC	90 VAC	Fixed Blade	3 A	Europe	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC UL	27 W	1.2 m	47.2 in	9 V	40 °C	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM30-9-EV-P5	75 mW	Wall Mount	CoC Tier 2 Level VI	CEE 7/16	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	3 A	Europe	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC UL	27 W	1.2 m	47.2 in	9 V	40 °C
CUI Inc. SWM30-18-NV-P5R	100 mW	Wall Mount	Level VI	NEMA 1-15P			Barrel Plug R/A	264 VAC	90 VAC	Fixed Blade	1.66 A	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	30 Watts	1.2 m	47.2 in	18 V	40 °C	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM30-36-NV-P5	100 mW	Wall Mount	Level VI	NEMA 1-15P	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	830 mA	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	30 Watts	1.2 m	47.2 in	36 V	40 °C
CUI Inc. SWM30-5-EV-P5R	75 mW	Wall Mount	CoC Tier 2 Level VI	CEE 7/16			Barrel Plug R/A	264 VAC	90 VAC	Fixed Blade	4 A	Europe	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC UL	20 W	1.2 m	47.2 in	5 V	40 °C	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM30-12-NV-P5	100 mW	Wall Mount	Level VI	NEMA 1-15P	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	3 A	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	36 W	1.2 m	47.2 in	12 V	40 °C
CUI Inc. SWM30-24-EV-P5	75 mW	Wall Mount	CoC Tier 2 Level VI	CEE 7/16	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	1.5 A	Europe	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC UL	36 W	1.2 m	47.2 in	24 V	40 °C
CUI Inc. SWM30-9-NV-P6	100 mW	Wall Mount	Level VI	NEMA 1-15P	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	264 VAC	90 VAC	Fixed Blade	3 A	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	27 W	1.2 m	47.2 in	9 V	40 °C
CUI Inc. SWM30-48-NV-P5R	100 mW	Wall Mount	Level VI	NEMA 1-15P			Barrel Plug R/A	264 VAC	90 VAC	Fixed Blade	620 mA	North America	42.9 mm	2.99 in	29.5 mm	1.69 "	75.9 mm	1.16 in	Medical	Positive Center	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	CB Scheme CSA EN FCC IEC PSE UL	30 Watts	1.2 m	47.2 in	48 V	40 °C	9.5 mm	5.5 mm	2.1 mm
