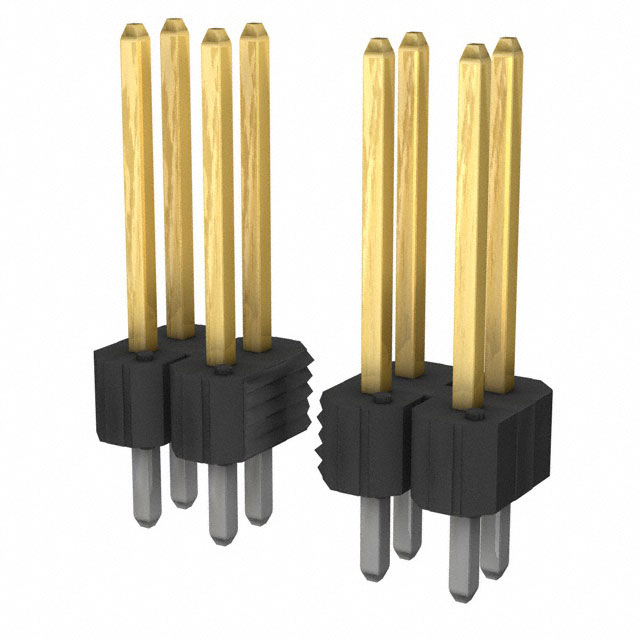

86837 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Voltage Rating	Insulation Color	Fastening Type	Connector Type	Number of Rows	Contact Shape	Contact Type	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post
Amphenol ICC (FCI) 86837-140H	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	40	Phosphor Bronze	30 Áin	0.76 Ám	Gold or Gold GXT™	0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in

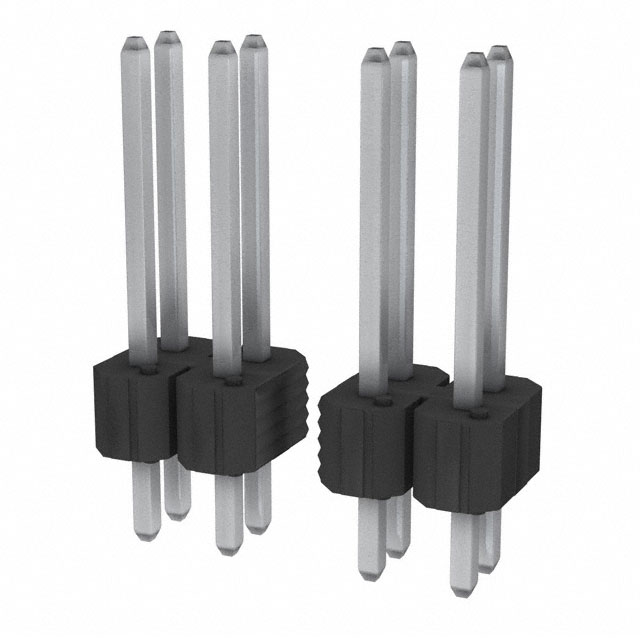

Amphenol ICC (FCI) 86837-402HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	2	Phosphor Bronze	100 çin	2.54 çm				110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in	Tin
Amphenol ICC (FCI) 86837-128HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	28	Phosphor Bronze	30 Áin	0.76 Ám	Gold or Gold GXT™	0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in
Amphenol ICC (FCI) 86837-426HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	26	Phosphor Bronze	100 çin	2.54 çm		0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in	Tin
Amphenol ICC (FCI) 86837-442HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	42	Phosphor Bronze	100 çin	2.54 çm		0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in	Tin
Amphenol ICC (FCI) 86837-472H	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole		72	Phosphor Bronze	100 çin	2.54 çm		0.1 in	2.54 mm		Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in
Amphenol ICC (FCI) 86837-166HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	66	Phosphor Bronze	30 Áin	0.76 Ám	Gold or Gold GXT™	0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in
Amphenol ICC (FCI) 86837-420HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	20	Phosphor Bronze	100 çin	2.54 çm		0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in	Tin
Amphenol ICC (FCI) 86837-626H	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole		26	Phosphor Bronze	30 Áin	0.76 Ám	Gold or Gold GXT™	0.1 in	2.54 mm		Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in
Amphenol ICC (FCI) 86837-624HLF	0.12 in	3.05 mm	0.6 in	15.24 mm	2.54 mm	0.1 in	Unshrouded	0.1 in	2.54 mm	Through Hole	5 A	24	Phosphor Bronze	30 Áin	0.76 Ám	Gold or Gold GXT™	0.1 in	2.54 mm	110 VDC	Black	Push-Pull	Header	2	Square	Male Pin	All	Solder	UL94 V-0	9.65 mm	0.38 in
