M2044BB Series

Catalog

SWITCH TOGGLE DP3T 0.4VA 28V

Part	Electrical Life	Actuator Material	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Bushing Thread	Actuator Type	Actuator Length [x]	Voltage Rating - DC	Switch Function	Termination Style	Illumination	Features	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches M2044BB1G01	50000 Cycles	Brass Chrome Plated	Panel Mount	DP3T	12.5 mm	0.4 VA	M12 x 1	Standard Round	11.5 mm	28 V	On-On-On	Solder Lug	Non-Illuminated	Jumper needed to achieve triple throw	28 V	85 °C	-30 ░C

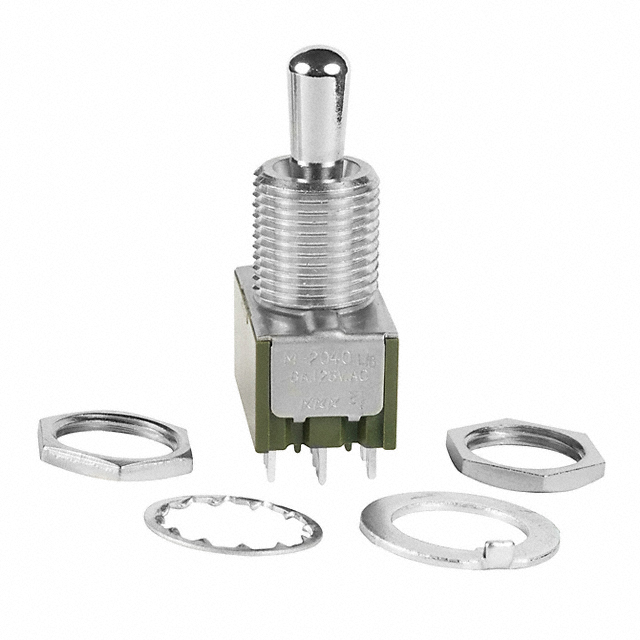

NKK Switches M2044BB1W01	25000 Steps	Brass Chrome Plated	Panel Mount	DP3T	12.5 mm	3 A 6 A	M12 x 1	Standard Round	11.5 mm	30 V	On-On-On	Solder Lug	Non-Illuminated	Jumper needed to achieve triple throw	125 V	85 °C	-30 ░C
