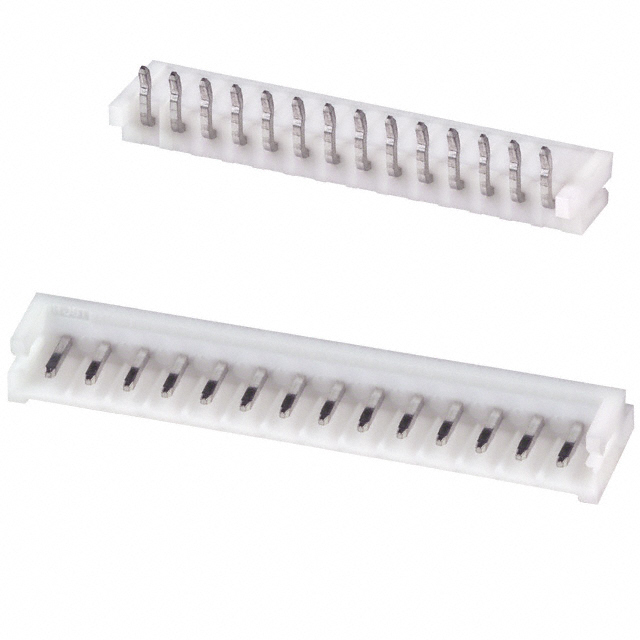

S14B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 14POS 2.5MM
| Part | Termination | Contact Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Fastening Type | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Insulation Height | Insulation Height | Voltage Rating | Number of Positions Loaded | Current Rating (Amps) | Contact Material | Contact Shape | Shrouding | Number of Rows | Style | Insulation Material | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Press-Fit Solder | Male Pin | 14 | 85 °C | -25 °C | Right Angle Through Hole | Natural | 2.5 mm | 0.098 in | Tin | Latch Lock | Header | 0.126 " | 3.2 mm | UL94 V-0 | 0.165 in | 4.2 mm | 250 V | All | 3 A | Brass | Square | Shrouded - 3 Wall | 1 | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | 4 mm | 0.157 in |
