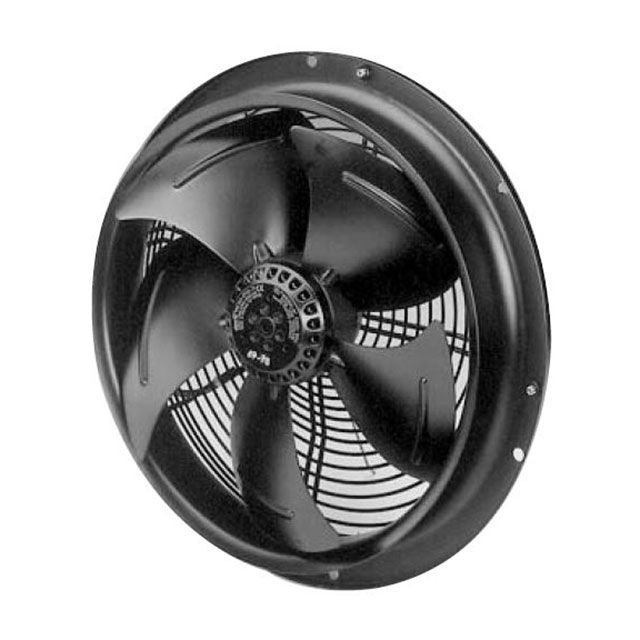

W4E315 Series

Catalog

FAN AXIAL 397X74MM 230VAC WIRE

Part	Material - Blade	Material - Frame	Termination	Voltage - Rated	Fan Type	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	Air Flow	Air Flow	Approval Agency	Noise	Weight [custom]	Weight [custom]	Width	Bearing Type	Current Rating (Amps)	Material - Blade [custom]	Material - Blade [custom]	RPM	Ingress Protection	Features	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure
ebm-papst Inc. W4E315-CP18-71	Metal	Metal	2 Wire Leads	230 VAC	Tubeaxial	Round	397 mm	120 W	1710 CFM	47.88 mł/min	CSA UL VDE	64 dB(A)	5.3 lbs	2.4 kg	74 mm	Ball
ebm-papst Inc. W4E315-CP18-70	Metal	Metal	2 Wire Leads	230 VAC	Tubeaxial	Round	397 mm	120 W	1710 CFM	47.88 mł/min	CSA UL VDE	64 dB(A)	5.3 lbs	2.4 kg	74 mm	Ball

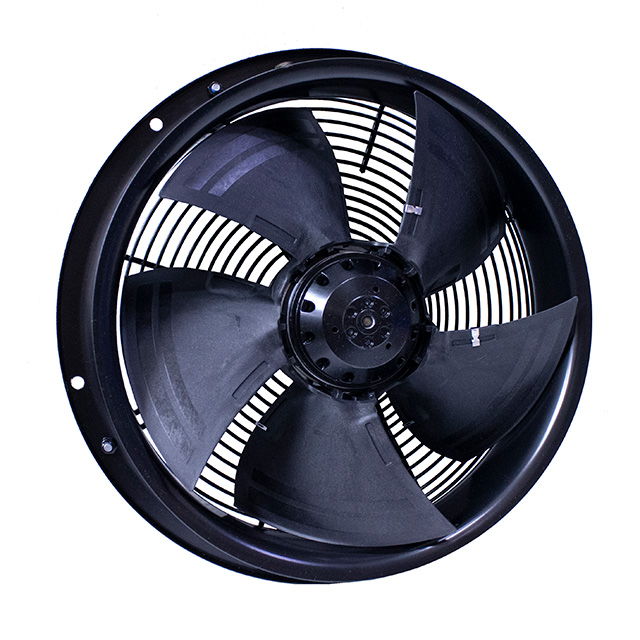

ebm-papst Inc. W4E315-CS22-70		Plastic Coating Steel	4 Wire Leads with Splice Terminals	115 VAC	Tubeaxial	Round	397 mm	160 W			CSA UL					Ball	1.34 A	Polypropylene (PP) Coating	Steel	1510 RPM	IP44	Capacitor Thermal Overload Protector (TOP)	119.8 mm	70 °C	-25 °C
ebm-papst Inc. W4E315-CS22-71		Plastic Coating Steel	4 Wire Leads with Splice Terminals	115 VAC	Tubeaxial	Round	397 mm	160 W			CSA UL					Ball	1.34 A	Polypropylene (PP) Coating	Steel	1510 RPM	IP44	Capacitor Thermal Overload Protector (TOP)	117 mm	70 °C	-25 °C

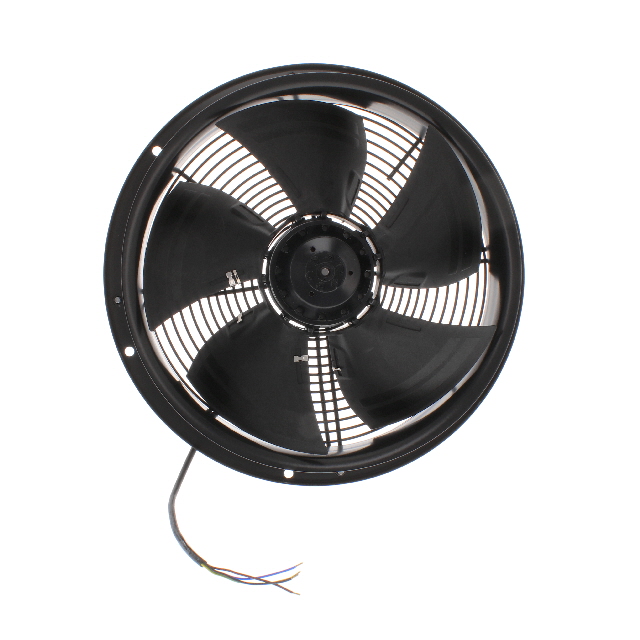

ebm-papst Inc. W4E315-CS20-70		Plastic Coating Steel	4 Wire Leads with Splice Terminals	230 VAC	Tubeaxial	Round	397 mm	155 W			CE CSA UL					Ball	660 mA	Polypropylene (PP) Coating	Steel	1490 RPM	IP44	Capacitor Thermal Overload Protector (TOP)	119.8 mm	70 °C	-25 °C	0.341 in H2O	85 Pa
ebm-papst Inc. W4E315-CP22-71	Metal	Metal	2 Wire Leads	115 VAC	Tubeaxial	Round	397 mm	120 W	1710 CFM	47.88 mł/min	CSA UL VDE	64 dB(A)	5.3 lbs	2.4 kg	74 mm	Ball
