012520CD Series

Catalog

BINDER COMBINATION SCREW 1/4-20

Part	Head Diameter	Head Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Material	Screw Head Type	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Head Height [z]	Head Height [z]	Drive Type	Type	Length - Overall	Length - Overall	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [x]

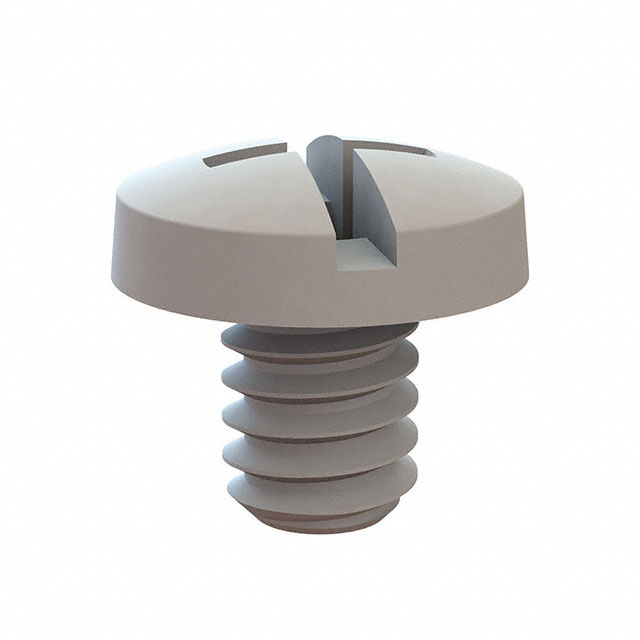

Essentra Components 012520CD031	12.99 mm	0.511 in	15.99 mm	0.63 in	Nylon	Binding Head	1/4"-20	0.313 in	7.94 mm	8.05 mm	0.317 "	Combination	Machine Screw

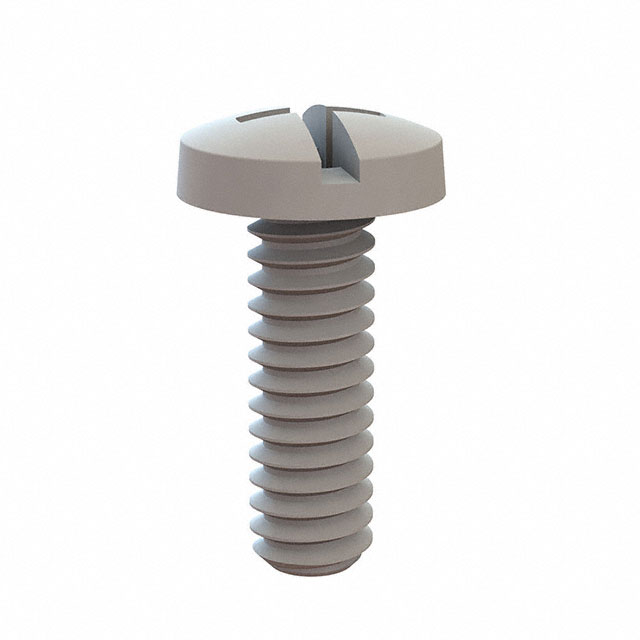

Essentra Components 012520CD075					Nylon	Binding Head	1/4"-20	0.75 in	19.05 mm			Combination	Machine Screw	1.067 in	27.1 mm	0.75 in

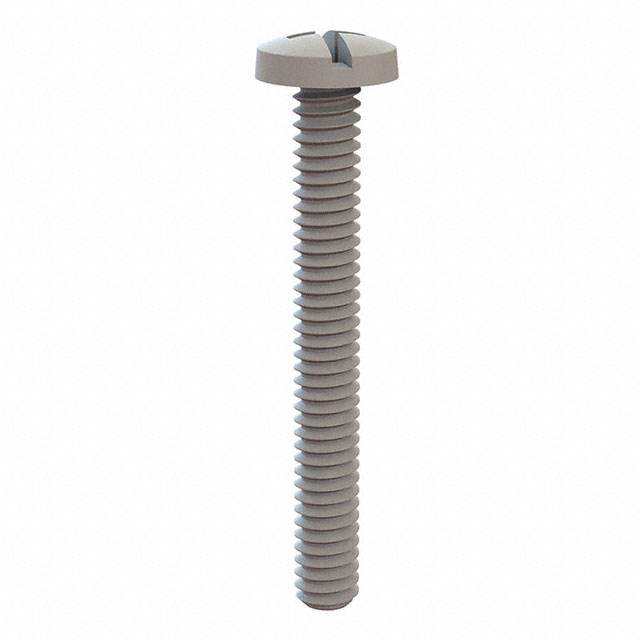

Essentra Components 012520CD200	12.99 mm	0.511 in	58.85 mm	2.317 "	Nylon	Binding Head	1/4"-20			8.05 mm	0.317 "	Combination	Machine Screw				50.8 mm	2 in

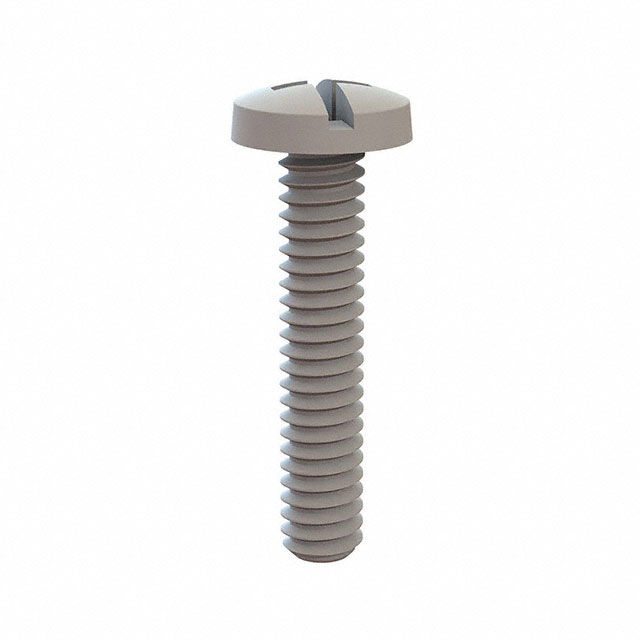

Essentra Components 012520CD125	12.99 mm	0.511 in	39.8 mm	1.567 "	Nylon	Binding Head	1/4"-20			8.05 mm	0.317 "	Combination	Machine Screw				31.75 mm	1.25 in

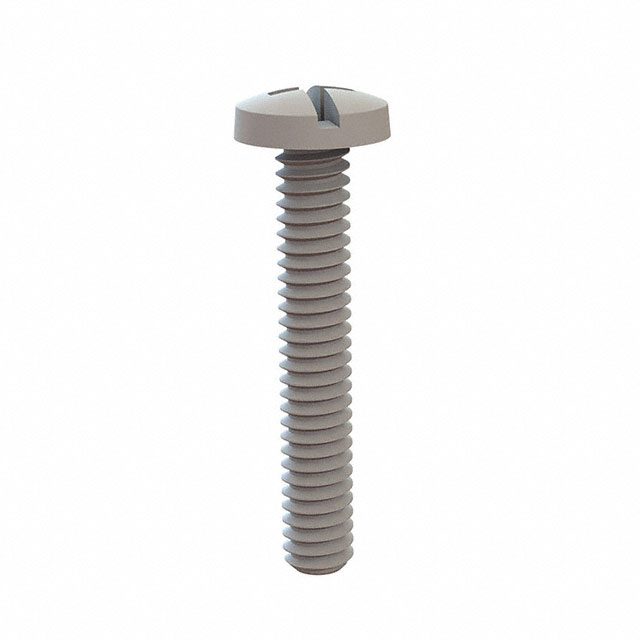

Essentra Components 012520CD150	12.99 mm	0.511 in	46.15 mm	1.817 in	Nylon	Binding Head	1/4"-20	1.5 in	38.1 mm	8.05 mm	0.317 "	Combination	Machine Screw

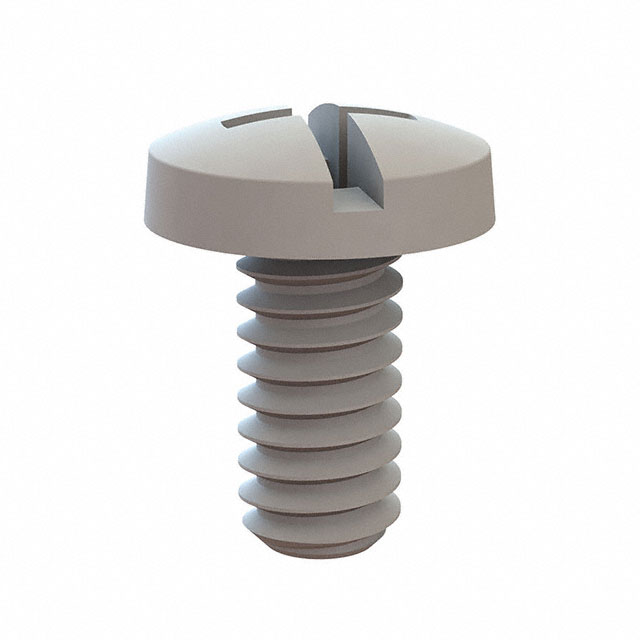

Essentra Components 012520CD050	12.99 mm	0.511 in	20.75 mm	0.817 in	Nylon	Binding Head	1/4"-20			8.05 mm	0.317 "	Combination	Machine Screw				12.7 mm	0.5 in	0.5 in

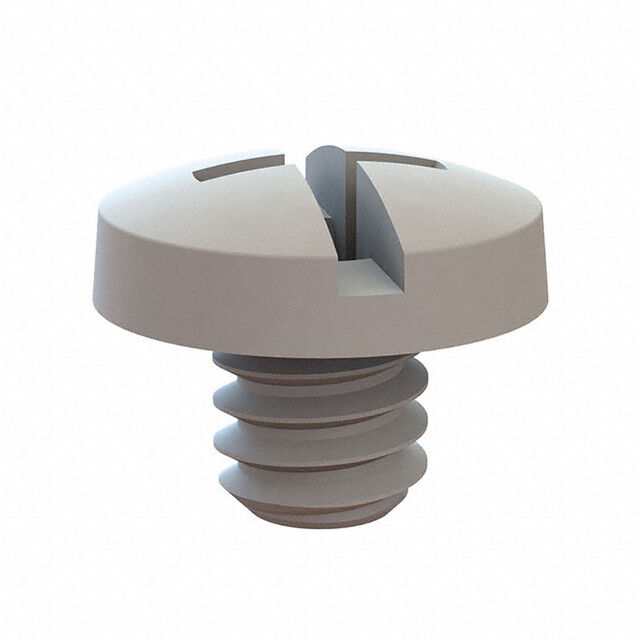

Essentra Components 012520CD025	12.99 mm	0.511 in			Nylon	Binding Head	1/4"-20	0.25 in	6.35 mm	8.05 mm	0.317 "	Combination	Machine Screw	0.567 in	14.4 mm					1/4

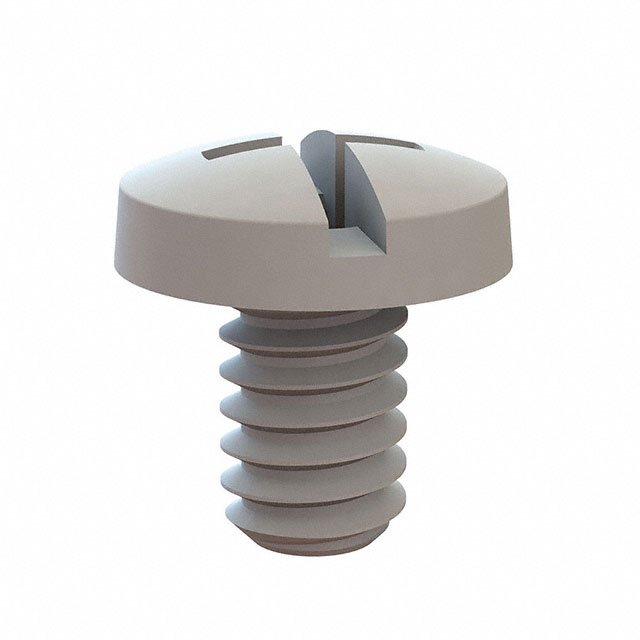

Essentra Components 012520CD037	12.99 mm	0.511 in	17.58 mm	0.692 in	Nylon	Binding Head	1/4"-20			8.05 mm	0.317 "	Combination	Machine Screw				9.53 mm	0.375 in	0.375 in
