1586040 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PIN HEADER, WIRE-TO-BOARD, 4.2 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT, VAL-U-LOK SERIES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Features	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Shrouding	Number of Rows [custom]	Contact Finish - Post	Material Flammability Rating	Style	Termination	Contact Shape	Insulation Height [z]	Insulation Height [z]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Insulation Color	Voltage Rating
TE Connectivity AMP Connectors 1586040-6	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	6	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC

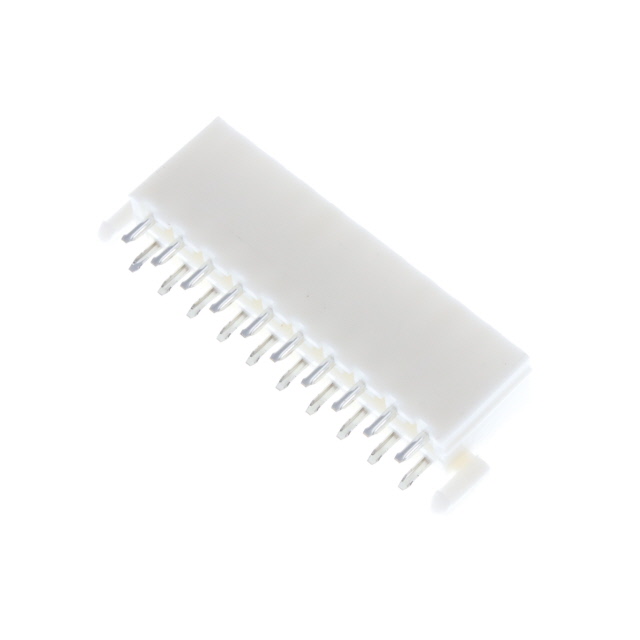

TE Connectivity AMP Connectors 2-1586040-0	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	20	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC

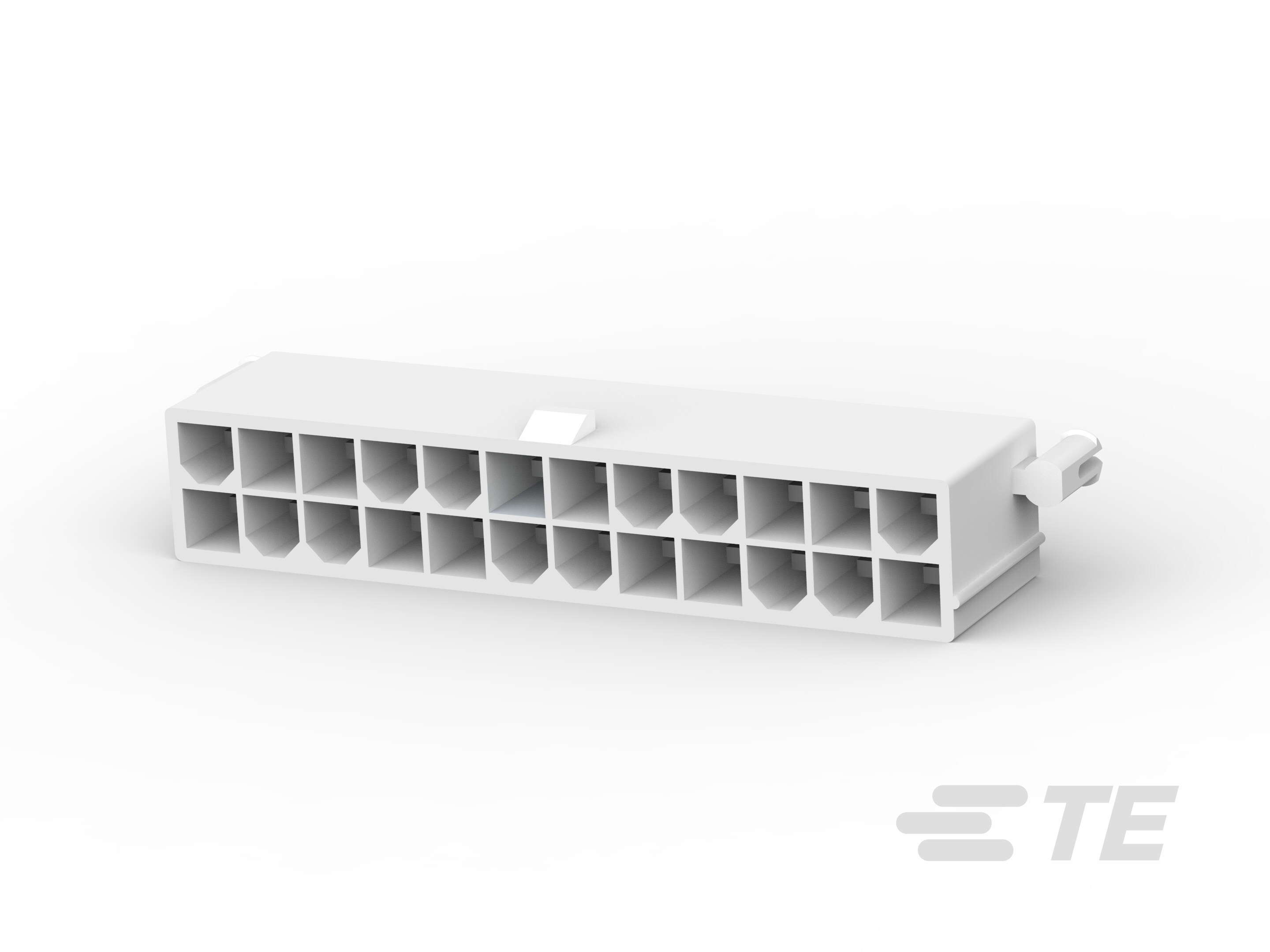

TE Connectivity AMP Connectors 2-1586040-4	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	24	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC

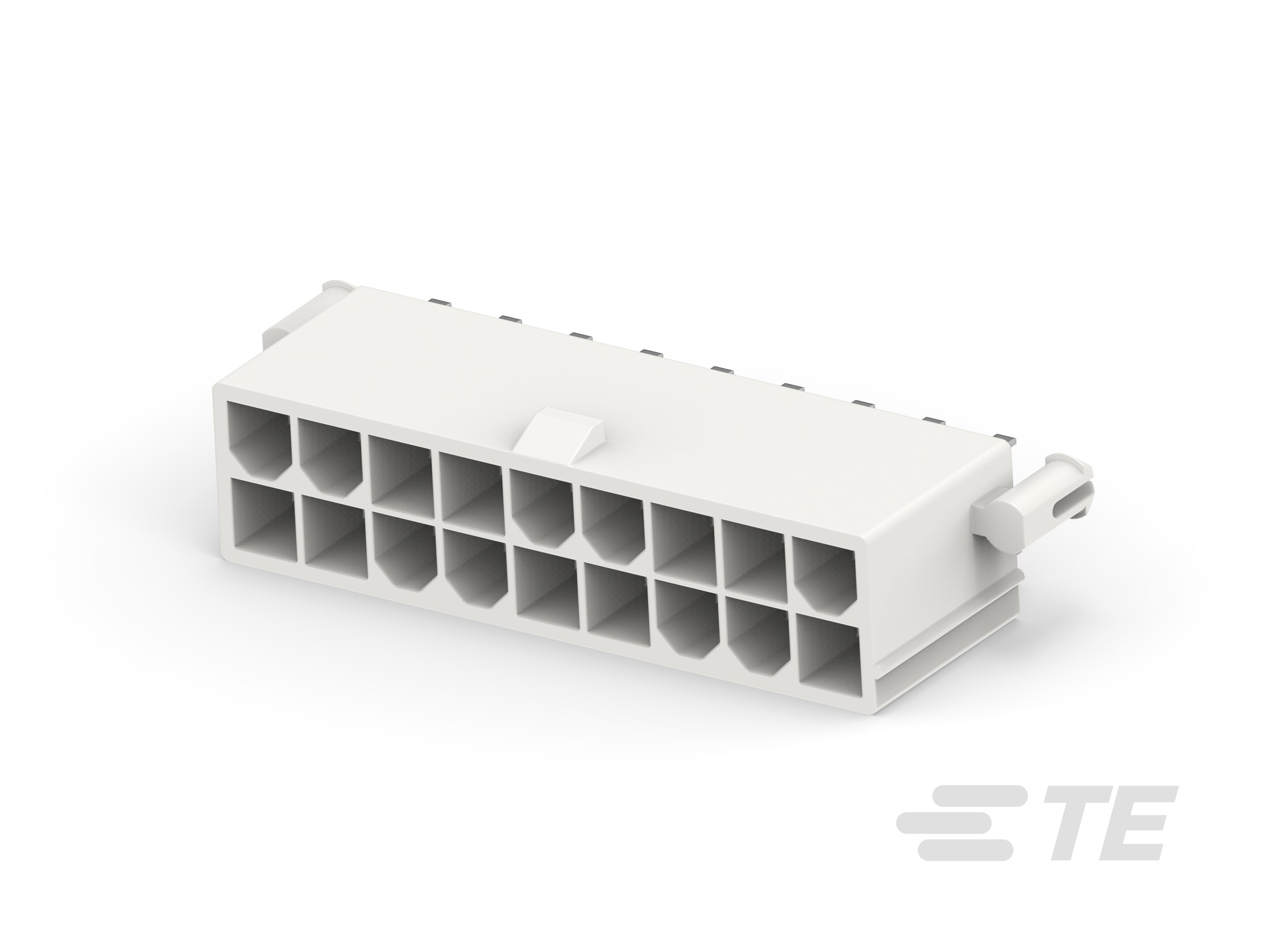

TE Connectivity AMP Connectors 1-1586040-8	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	18	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC
TE Connectivity AMP Connectors 1-1586040-6	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	16	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC
TE Connectivity AMP Connectors 1586040-4	2.03 µm	80 µin	General Purpose Industrial Lighting	Nylon Polyamide (PA)	Board Lock	All	2.03 µm	80 µin	Locking Ramp	Brass Alloy	0.165 in	4.2 mm	0.138 in	3.5 mm	9 A	0.165 in	4.2 mm	Header	Shrouded - 4 Wall	2	Tin	UL94 V-0	Board to Cable/Wire	Solder	Square	12.8 mm	0.504 "	4	-40 C	105 ░C	Through Hole	Male Pin	Natural	600 VAC
