TPS54240-Q1 Series

Automotive 3.5V to 42V, 2.5A Buck Converter with Eco-Mode™

Catalog

Automotive 3.5V to 42V, 2.5A Buck Converter with Eco-Mode™

Part	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Frequency - Switching [Max]	Frequency - Switching [Min]	Mounting Type	Supplier Device Package	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Topology	Function	Current - Output	Output Type	Regulator Topology	Frequency - Switching	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part	Main Purpose	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Qualification	Grade
Texas Instruments TPS54240DGQ	39 V	42 V	1	3.5 V	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	2.5 MHz	100 kHz	Surface Mount	10-HVSSOP	Positive	150 °C	-40 °C	0.8 V	Buck Split Rail	Step-Down	2.5 A	Adjustable

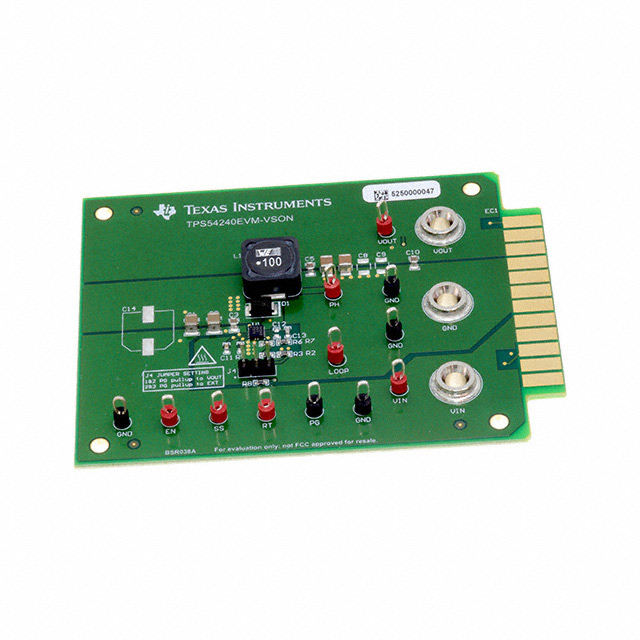

Texas Instruments TPS54240EVM-VSON																	2.5 A		Buck	500 kHz	Fully Populated	Non-Isolated	1	Board(s)	TPS54240	DC/DC Step Down	3.3 V	24 V	7 V
Texas Instruments TPS54240DGQR	39 V	42 V	1	3.5 V	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	2.5 MHz	100 kHz	Surface Mount	10-HVSSOP	Positive	150 °C	-40 °C	0.8 V	Buck Split Rail	Step-Down	2.5 A	Adjustable

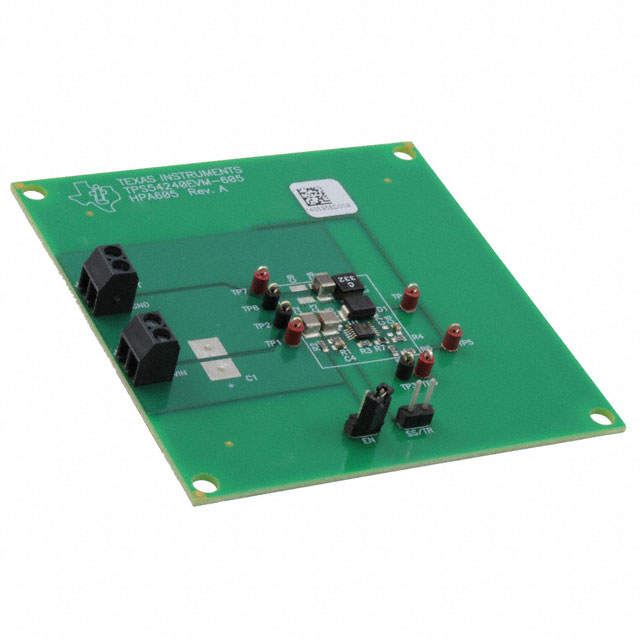

Texas Instruments TPS54240EVM-605																	2.5 A		Buck	160 kHz	Fully Populated	Non-Isolated	1	Board(s)	TPS54240	DC/DC Step Down	3.3 V	20 V	10 V
Texas Instruments TPS54240QDRCRQ1	39 V	42 V	1	3.5 V	10-VFDFN Exposed Pad		2.5 MHz	100 kHz	Surface Mount	10-VSON (3x3)	Positive	125 °C	-40 °C	0.8 V	Buck Split Rail	Step-Down	2.5 A	Adjustable												AEC-Q100	Automotive

Catalog

Automotive 3.5V to 42V, 2.5A Buck Converter with Eco-Mode™

Key Features

• Qualified for Automotive ApplicationsAEC Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to 125°C Ambient OperatingTemperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C63.5-V to 42-V Input Voltage Range200-mΩ High-Side MOSFETHigh Efficiency at Light Loads With aPulse-Skipping Eco-mode Control Scheme138-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow Start/SequencingUV and OV Power-Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage ReferenceMSOP10 PowerPAD PackageSupported by SwitcherPro Software Tool(http://focus.ti.com/docs/toolsw/folders/print/switcherpro.html)For SWIFT Documentation, See the TI Web site athttp://www.ti.com/swiftQualified for Automotive ApplicationsAEC Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to 125°C Ambient OperatingTemperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C63.5-V to 42-V Input Voltage Range200-mΩ High-Side MOSFETHigh Efficiency at Light Loads With aPulse-Skipping Eco-mode Control Scheme138-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow Start/SequencingUV and OV Power-Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage ReferenceMSOP10 PowerPAD PackageSupported by SwitcherPro Software Tool(http://focus.ti.com/docs/toolsw/folders/print/switcherpro.html)For SWIFT Documentation, See the TI Web site athttp://www.ti.com/swift

Description

The TPS54240 device is a 42-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse skip mode reduces the no load, regulated output supply current to 138 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA, when the enable pin is low. Undervoltage lockout is internally set at 2.5 V, but it can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing and tracking. An open-drain power good signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and optimization of external component size. Frequency foldback and thermal shutdown protects the part during an overload condition. The TPS54240 is available in 10-pin, thermally-enhanced HVSSOP and 10-pin 3-mm × 3-mm PowerPAD package. The TPS54240 device is a 42-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse skip mode reduces the no load, regulated output supply current to 138 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA, when the enable pin is low. Undervoltage lockout is internally set at 2.5 V, but it can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing and tracking. An open-drain power good signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and optimization of external component size. Frequency foldback and thermal shutdown protects the part during an overload condition. The TPS54240 is available in 10-pin, thermally-enhanced HVSSOP and 10-pin 3-mm × 3-mm PowerPAD package.
