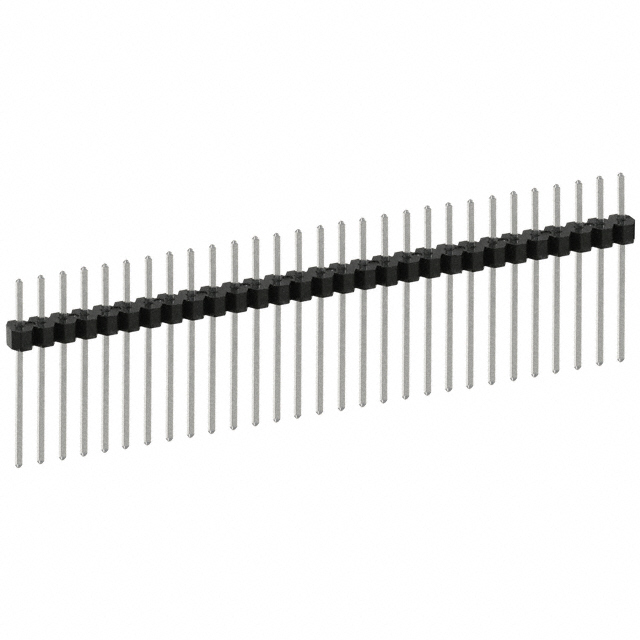

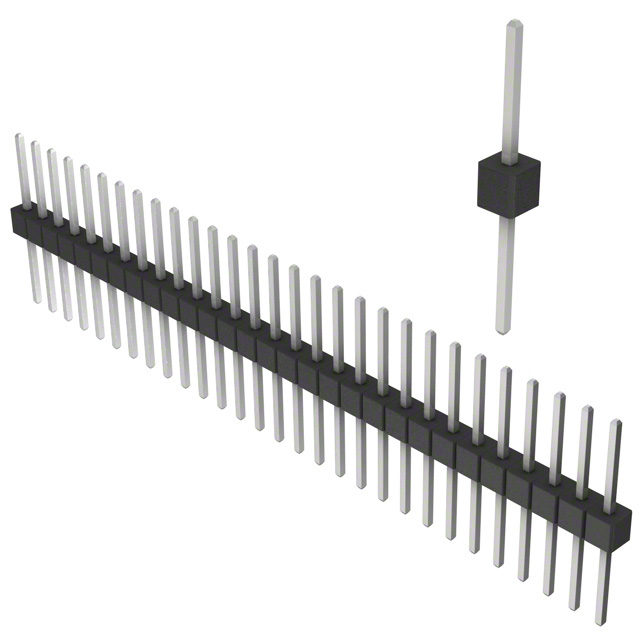

PEC29 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 29POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Shrouding	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Style	Current Rating (Amps)	Termination	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

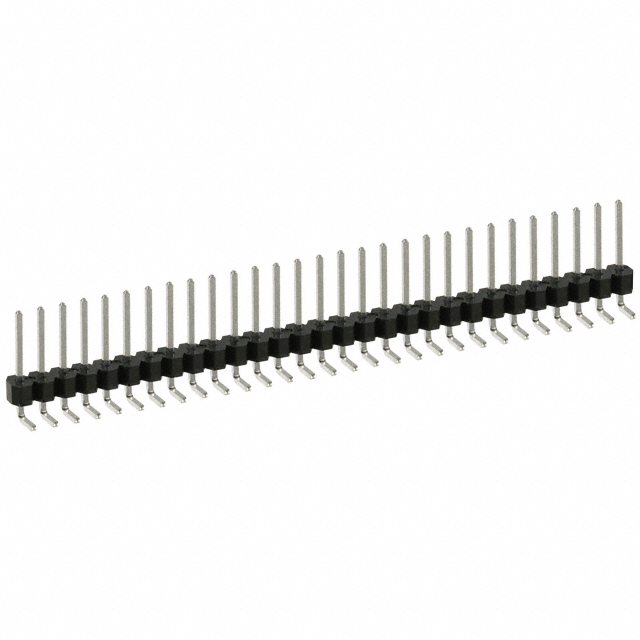

Sullins Connector Solutions PEC29SGAN	2.54 µm	100 µin	Phosphor Bronze	1	8.08 mm	0.318 in	Unshrouded	Right Angle Through Hole	29	3.56 mm	0.14 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Square
Sullins Connector Solutions PEC29SAHN	2.54 µm	100 µin	Phosphor Bronze	1	5.84 mm	0.23 in	Unshrouded	Through Hole	29	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.82 in	20.83 mm	Polybutylene Terephthalate (PBT)	Square	29.21 mm	1.15 in

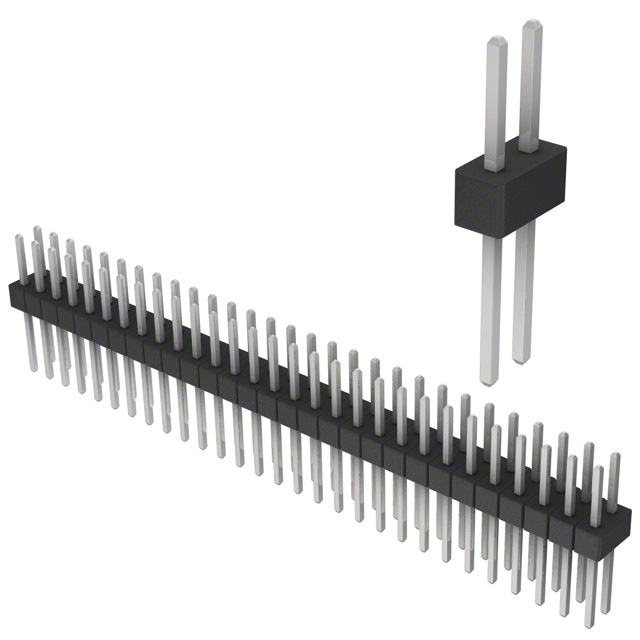

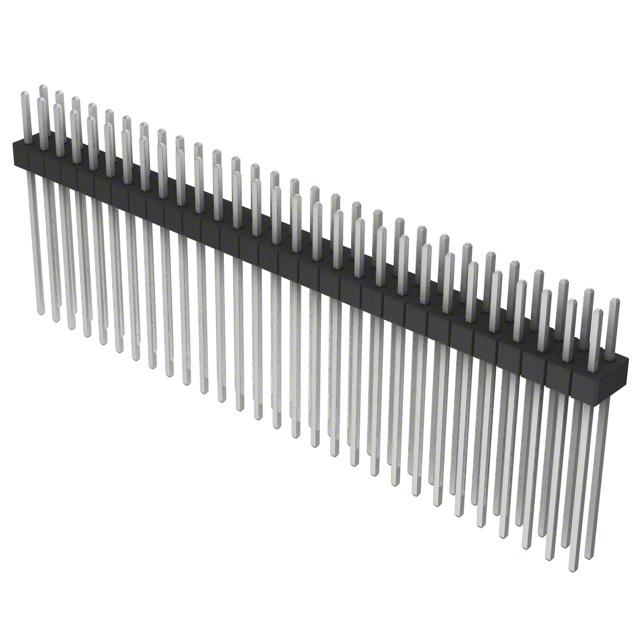

Sullins Connector Solutions PEC29DACN	2.54 µm	100 µin	Phosphor Bronze		5.84 mm	0.23 in	Unshrouded	Through Hole	58	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.32 in	8.13 mm	Polybutylene Terephthalate (PBT)	Square	16.51 mm	0.65 in	2	0.1 in	2.54 mm
Sullins Connector Solutions PEC29DGBN	2.54 µm	100 µin	Phosphor Bronze		8.08 mm	0.318 in	Unshrouded	Right Angle Through Hole	58			Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin			Polybutylene Terephthalate (PBT)	Square			2	0.1 in	2.54 mm	6.1 mm	0.24 in	5.08 mm	0.2 "

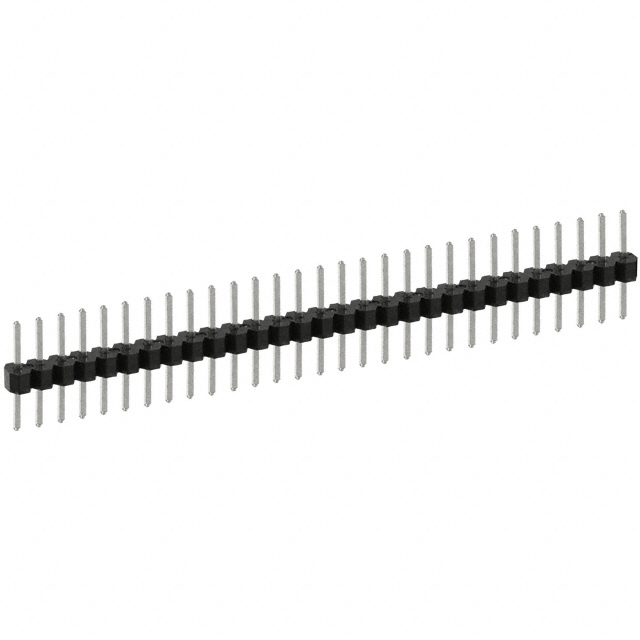

Sullins Connector Solutions PEC29SABN	2.54 µm	100 µin	Phosphor Bronze	1	5.84 mm	0.23 in	Unshrouded	Through Hole	29	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.23 "	5.84 mm	Polybutylene Terephthalate (PBT)	Square	14.22 mm	0.56 in
Sullins Connector Solutions PEC29DFCN	2.54 µm	100 µin	Phosphor Bronze		8.08 mm	0.318 in	Unshrouded	Through Hole	58	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.32 in	8.13 mm	Polybutylene Terephthalate (PBT)	Square	18.75 mm		2	0.1 in	2.54 mm					0.738 in

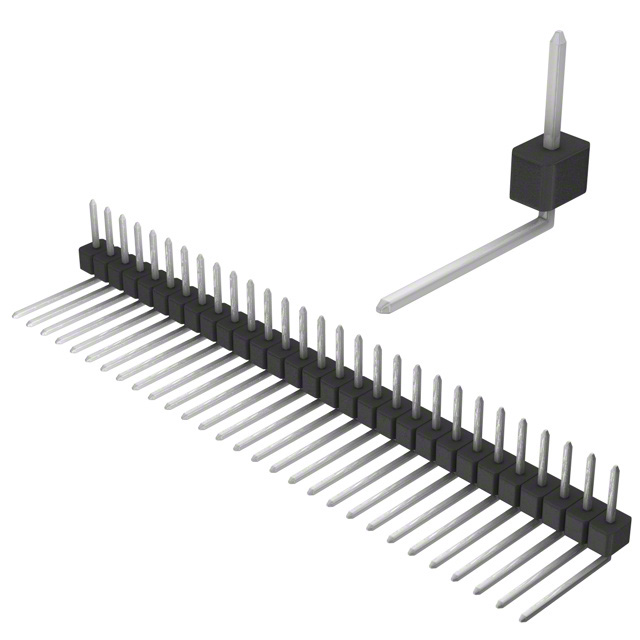

Sullins Connector Solutions PEC29SBDN	2.54 µm	100 µin	Phosphor Bronze	1	5.84 mm	0.23 in	Unshrouded	Right Angle Through Hole	29	3.56 mm	0.14 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.4 in	10.16 mm	Polybutylene Terephthalate (PBT)	Square

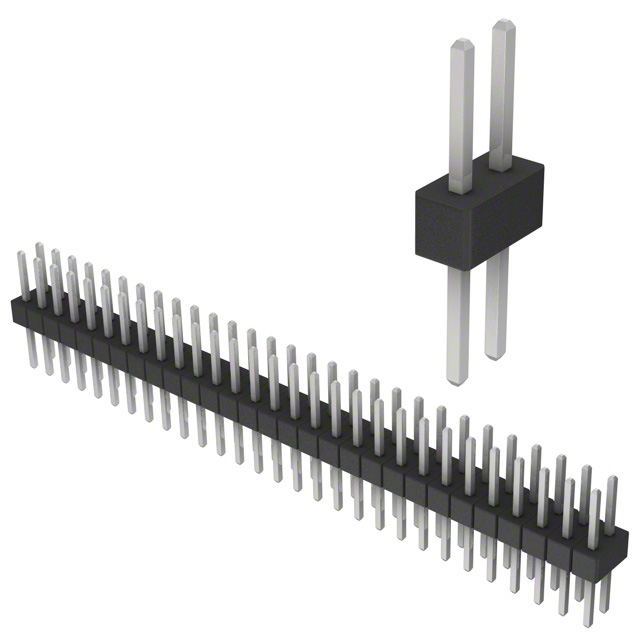

Sullins Connector Solutions PEC29DABN	2.54 µm	100 µin	Phosphor Bronze		5.84 mm	0.23 in	Unshrouded	Through Hole	58	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.23 "	5.84 mm	Polybutylene Terephthalate (PBT)	Square	14.22 mm	0.56 in	2	0.1 in	2.54 mm
Sullins Connector Solutions PEC29SAGN	2.54 µm	100 µin	Phosphor Bronze	1	5.84 mm	0.23 in	Unshrouded	Through Hole	29	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.72 "	18.29 mm	Polybutylene Terephthalate (PBT)	Square	26.67 mm	1.05 in

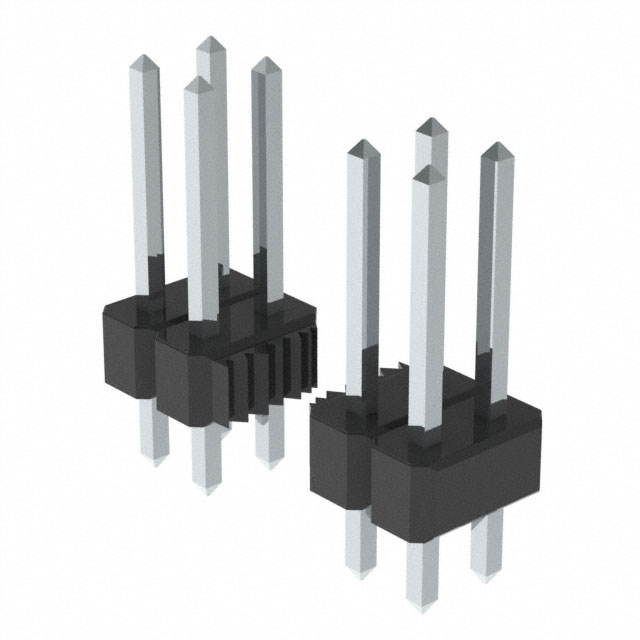

Sullins Connector Solutions PEC29DFAN	2.54 µm	100 µin	Phosphor Bronze		8.08 mm	0.318 in	Unshrouded	Through Hole	58	2.54 mm	0.1 in	Header Breakaway	All	UL94 V-0	Push-Pull	100 çin	2.54 çm	0.1 "	2.54 mm	-65 ░C	125 °C	Male Pin	Board to Board Cable	3 A	Solder	Black	Tin	0.12 in	3.05 mm	Polybutylene Terephthalate (PBT)	Square			2	0.1 in	2.54 mm						13.67 mm	0.538 in
